Manual patient lift MD-T-200

battery-operatedceiling-mountedheight-adjustable

Introduction

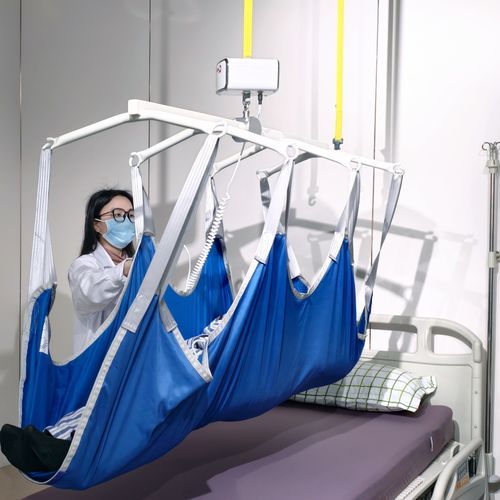

MD-T-200 is engineered for home care, hospitals and professional care facilities to assist sitting and supine transfers. The lightweight modular overhead track enables quick installation with minimal structural modification. The track layout is configurable to provide continuous transfer routes between care points (bed, bathroom, wheelchair, sofa, corridor), supporting nursing workflow and care efficiency.

Standard Functions

• Maximum lifting capacity: 200 kg
• Single main unit usable as fixed ceiling or portable mobile lift by reversing mounting orientation
• Manual and motorized control options
• Wireless remote control available
• Charging via hand-held controller; battery-powered operation

Main Technical Data

• Model: MD-T-200
• Main unit dimensions: 198 × 188 × 98 mm
• Main unit weight: 3.8 kg
• Max Safe Working Load: 200 kg
• Electric lifting speed (examples): 200 kg – Lift 15.3 mm/s, Lower 24.3 mm/s; 100 kg – Lift/Lower 22.2 mm/s; No-load – Lift 24.2 mm/s, Lower 19.1 mm/s
• Hand control protection class: IPx4
• Control: Hand-held controller; Bluetooth remote control (option)
• Battery: 25.6 V, 1.8 Ah; Charging time ≤ 4 hours
• Standard sling length: 2150 mm (customizable)
• Emergency stop (ground-accessible pull cord); Emergency descent; Fault alarm; Power-off brake

Advantages
Compact and lightweight — Main unit 3.8 kg, suitable for transfers in homes, wards and nursing facilities.
Dual-mode design — Same main unit supports fixed installation or portable use by switching orientation.
Flexible installation — Multi-angle mounting Upright Hanging/ Reverse Hangingfacilitates door crossing and adapts to existing interiors without major modification.
Safe transfers — Removes need for floor-based transfer devices and reduces secondary injury risk; designed to meet care safety requirements.
Single-caregiver operation — One-key remote control reduces caregiver physical effort and injury risk.
Ergonomic support — Portable support rod maintains optimal posture and user comfort.
Lower operating costs — Detachable washable slings and maintenance-minimal tracks reduce lifecycle costs.

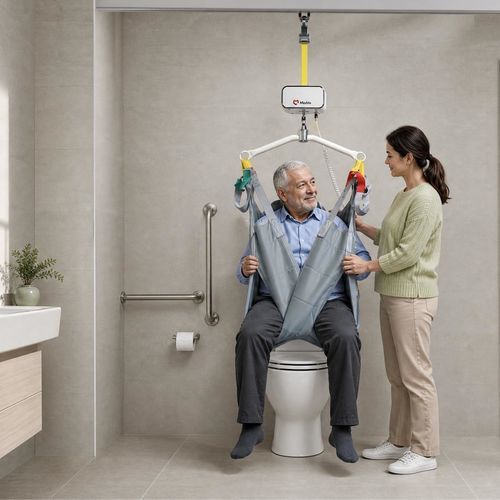

Multiple sling options — Supports standing, sitting and supine slings for showering, toileting, wheelchair transfers and prone ventilation scenarios.
Enhanced Quality of Life, Preserved Dignity -Integrating ergonomics and psychological needs, it enables eye contact and care communication in operation, boosting mutual trust for a warmer, more respectful care experience.

Slings and Fittings
Soft-lined slings are available in multiple sizes for user comfort.
Door-crossing layouts and fittings can be customized to be compatible with existing fixtures (sprinklers, air conditioning, lighting, doors).
Wall-damage-free installation options support most residential and clinical environments with a 200 kg maximum load.

Contraindications
Not suitable for patients with unhealed lower limb fractures, unstable joint injuries, severe bleeding disorders, orthostatic hypotension, severe osteoporosis, severe cognitive impairment, or other conditions contraindicating assisted transfers.

Applications
Intended for elderly care, postoperative rehabilitation, patients with lower-limb mobility limitations and individuals with paralysis in homes, hospitals, nursing homes and rehabilitation centers.
