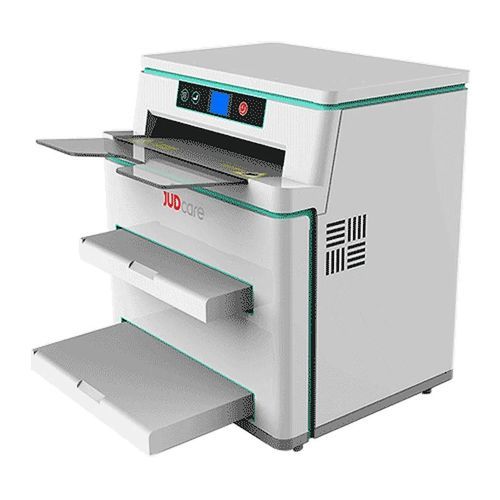

Thermal printer MDST-22

inkjetlasermedical

Overview
The MDST-22 printer ensures seamless compatibility with MRI, CT, DR, CR, DSA and other imaging modalities, delivering sharp, diagnostic-quality X-ray films. It features a two-tray design for online printing of two different film sizes and leverages Drypix Lite technology for high image clarity and consistency.

Key features

• Two input media trays for online printing of multiple film sizes
• Safe daylight film loading to minimize exposure risk
• Direct digital printing for streamlined workflow
• Built-in density meter with automatic calibration for consistent image quality
• Compact, multifunctional design compatible with Fujifilm plates

Product specifications

• Model: MDST-22
• Spatial resolution: 300 dpi
• Contrast resolution: 12 bits
• Media type: Dry thermal film
• Supported media sizes: 8x10in (20x25cm), 10x12in (25x30cm), 11x14in (28x35cm), 14x17in (35x43cm)
• Film trays: 2 supply trays (100 sheets per tray)
• Throughput: 8x10in — 90 sheets/hour; 14x17in — 50 sheets/hour
• Warm-up / time to operate: 3 minutes at 25°C

Product description
The MDST-22 is a versatile medical dry printer built on Drypix Lite technology to deliver precision and efficiency across a range of imaging modalities including MRI, CT, DR, CR and DSA. Its two-tray design supports two different film sizes online, enabling flexible workflow. By leveraging Fujifilm plate compatibility and automatic density calibration, the MDST-22 produces consistent, diagnostic-quality prints for radiology departments.

Technical specifications

• Model: MDST-22
• Spatial resolution: 300 dpi
• Contrast resolution: 12 bits
• Media type: Dry thermal film
• Media size options: 8x10in, 10x12in, 11x14in, 14x17in
• Film trays: 2 supply trays (100 sheets each)
• Film loading: Daylight film loading
• Density adjustment: Automatic (built-in density meter)
• Throughput: 90 sheets/hour (8x10in); 50 sheets/hour (14x17in)
• Time to operate: 3 mins (25°C)
• Hard disk: 4 GB
• Memory: 512 MB
• Power: 100–240 V, 50/60 Hz
• Power consumption: 500 VA
• Dimensions (W×D×H): 553×440×615 mm
• Weight: 64 kg
