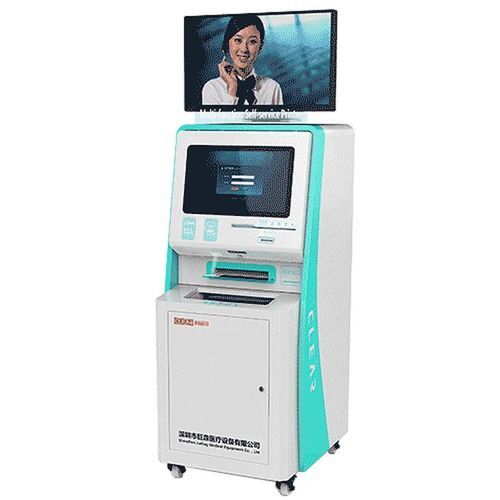

X-ray film printer SDP-2C

Overview
SDP-2C self-service printer enables fast report and film printing via code scanning, reducing labor and wait times to improve hospital workflow efficiency.

Product description
The SDP-2C is a medical self-service printing kiosk designed for hospitals and imaging centers. It allows patients or staff to print radiology reports and films using QR-code or scan-to-print workflows. The kiosk integrates a 21.5 inch touch display, daylight film loading and two supply trays to support common dry thermal film sizes. Its automated printing flow reduces manual handling in radiology reception and expedites report delivery.

Key features

• QR code / scan-to-print workflow for patient self-service
• Reduces patient waiting times for reports and films
• Automates film output to reduce radiology staff workload
• Supports multiple film sizes: 8x10, 10x12, 11x14, 14x17 in
• Compact kiosk format with daylight film loading and two 100-sheet trays

Product Specification (table)
Model: SDP-2C
Display size: 21.5 inch touch screen
Spatial resolution: 300 dpi or 508 dpi optional
Contrast resolution: 12 bits or 14 bits optional
Media type: Dry thermal film
Media size: 8x10in, 10x12in, 11x14in, 14x17in
Film trays: 2 supply trays
Capacity of supply trays: 100 sheets per supply tray
Film loading: Daylight film loading
Density adjustment: Automatic
Printing method: Scan code to print
Time to operate: 3 mins (room temperature 25°C)
Hard disk: 500GB
Memory: 4GB
Power: 100~240V, 50/60Hz
Report printed: Laser printer
Imager dimension: 850x612x763mm
Imager weight: 190kg

Technical specifications

• Model: SDP-2C
• Display: 21.5 inch touch screen
• Spatial resolution: 300 dpi or 508 dpi (optional)
• Contrast resolution: 12 bits or 14 bits (optional)
• Media type: Dry thermal film
• Supported media sizes: 8x10, 10x12, 11x14, 14x17 inches
• Film trays: 2 supply trays (100 sheets per tray)
• Film loading: Daylight film loading
• Density adjustment: Automatic
• Printing method: Scan code / QR code printing
• Typical operation time: 3 minutes (at 25°C)
• Storage: 500GB hard disk
• Memory: 4GB RAM
• Power supply: 100–240V, 50/60Hz
• Report output: Laser printer (for printed reports)
• Dimensions: 850 x 612 x 763 mm
• Weight: 190 kg
