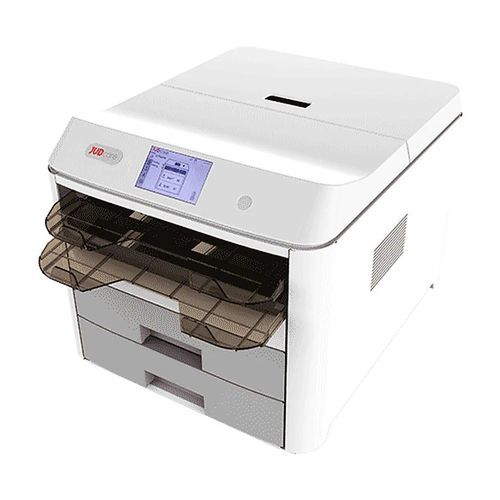

Mammography X-ray film printer MDST-24

Product Overview
MDST-24 is a compact thermal film printer designed for radiology departments and imaging centers. With 508 dpi spatial resolution and 14-bit contrast resolution, it delivers sharp, diagnostic-quality hardcopy output for general radiology and mammography workflows. The unit supports dry thermal film and offers reliable, space-saving operation with dual media paths for continuous printing.

Product Specification
Model: MDST-24
Spatial resolution: 508 dpi
Contrast resolution: 14 bits
Media type: Dry thermal film
Media size: 8×10 in, 10×12 in, 11×14 in, 14×17 in
Film trays: 2 supply trays and 2 output trays
Capacity of supply trays: 100 sheets per supply tray
Film loading: Daylight film loading
Density adjustment: Automatic
Throughput: 8×10 in (20×25 cm) 90 sheets/hour; 14×17 in (35×43 cm) 65 sheets/hour
Time to operate: 3 mins (room temperature 25℃)
Hard disk: 32GB
Memory: 4GB
Power: 100~240V, 50/60Hz
Power consumption: 400VA
Imager dimension: 600×500×465 mm
Imager weight: 51 kg

Product Description
The MDST-24 is a high-performance thermal printer optimized for clinical imaging needs. It functions as an x-ray film printer and a mammography-capable unit, providing consistent hardcopy quality essential for diagnostic review and archiving. Its automatic density control and one-key calibration reduce operator adjustments and support steady imaging results across modalities.

Key Features

• Auto-calibration: One-key automatic calibration and self-adaptive imaging process to maintain consistent image quality.
• High stability: Simple, service-friendly design reduces failure rates and maintenance costs.
• Superior image quality: 508 dpi spatial resolution with 14-bit contrast for precise, diagnostic prints.
• Compact design: Small footprint with two media sizes online to save space and facilitate continuous operation.

Technical specifications

• Model: MDST-24
• Resolution: 508 dpi
• Contrast resolution: 14 bits
• Media type: Dry thermal film
• Supported media sizes: 8×10 in, 10×12 in, 11×14 in, 14×17 in
• Trays: 2 supply trays and 2 output trays
• Supply tray capacity: 100 sheets each
• Film loading: Daylight film loading
• Density adjustment: Automatic
• Throughput: 8×10 in — 90 sheets/hour; 14×17 in — 65 sheets/hour
• Warm-up / time to operate: 3 mins (25℃)
• Storage: 32GB hard disk
• Memory: 4GB
• Power: 100~240V, 50/60Hz; consumption 400VA
• Dimensions (W×D×H): 600×500×465 mm
• Weight: 51 kg
