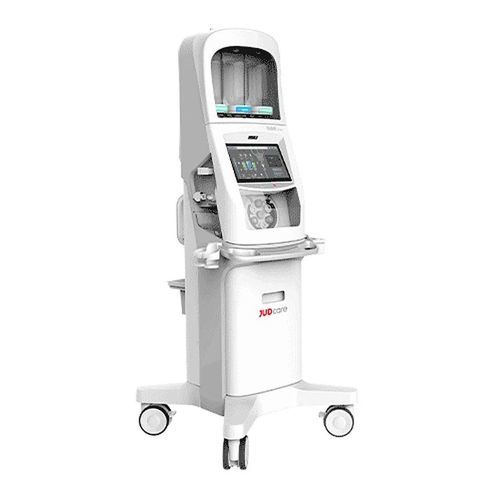

CT scan contrast media injector Edot CP100

triple-head

Product Overview
Edot CP100 is a roll-pump type contrast injector designed for CT scanning. As the world’s first intelligent syringeless liquid-tank contrast injector, it prioritizes patient comfort and simplifies contrast delivery. Flexible liquid tank options from 50 ml to 1000 ml eliminate syringe consumables; only an internal tubing replacement is required every 24 hours. The design streamlines injection workflow, improves staff efficiency, and reduces consumable costs.

Key Benefits

• Efficient: saves time and reduces staff workload, enabling faster patient throughput.
• Syringeless: allows patient-specific tubing changes while keeping pump tubing in place for 24 hours, removing traditional syringe consumables.
• Intelligence: supports full-process management of scan and injection information.
• Safety: multiple detection, reminder and warning features to ensure injection safety.

Product Specification (table)
Model: Edot CP100
Media transport: Roll Pump
Flow Rate: 0.1-10.0 ml/s
Reservoir volume: 500-1000 ml (flexible tank options 50–1000 ml)
Injection pressure (Max.): 285 psi
Injection pressure limit: 29-220 psi
Number of injection programs: Max. 40
Injection program storage: Max. 200
Injection program storage (total): 20000
Air Monitoring: 5 ultrasonic sensors
Communication: WiFi, cable, Bluetooth
CT synchronization: CiA425
Power: 100–240 V, 50/60 Hz
Injector dimensions: 680 x 680 x 1650 mm
Weight: 92 kg

Product Description
Edot CP100 is a CT contrast injector that combines roll-pump delivery with an intelligent liquid tank to simplify contrast media administration. With tank options from 50 ml to 1000 ml and precise flow control, it supports a wide range of clinical protocols while minimizing consumables and maintenance interventions.

Technical specifications

• Model: Edot CP100
• Media transport: Roll Pump
• Flow Rate: 0.1–10.0 ml/s
• Reservoir volume: 500–1000 ml (flexible tank options from 50 ml to 1000 ml)
• Injection pressure (Max.): 285 psi
• Injection pressure limit: 29–220 psi
• Number of injection programs: Max. 40
• Injection program storage: Max. 200
• Injection program storage (total): 20000
• Air monitoring: 5 ultrasonic sensors
• Communication: WiFi, cable, Bluetooth
• CT synchronization protocol: CiA425
• Power: 100–240 V, 50/60 Hz
• Injector dimensions: 680 x 680 x 1650 mm
• Weight: 92 kg
