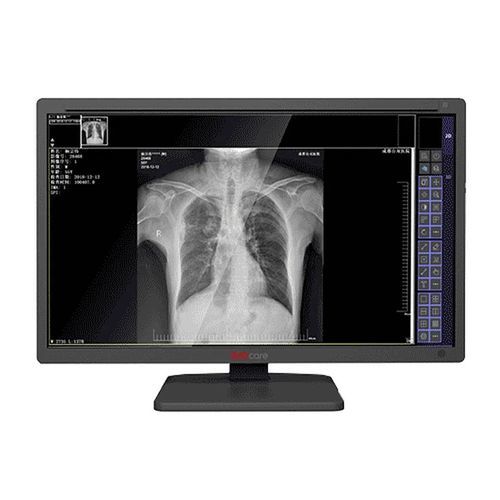

Medical display MDS-C series

diagnosticmedical imagingradiology

Overview
The MDS-C2704B and MDS-C3006B diagnostic displays are medical-grade monitors developed for radiology and diagnostic imaging workflows. Calibrated to DICOM standards and equipped with a built-in 16-bit Look-Up Table (LUT), they provide precise grayscale reproduction, high brightness and wide viewing angles for clinical reading rooms and PACS environments.

Model MDS-C2704B - Product Specification
Model: MDS-C2704B
Display size: 27 inch
Pixel: 4MP
Resolution: 2560×1440
Pixel pitch: 0.233 (H) × 0.233 (V) mm
Grayscale or Color: Color
Max. brightness: 500 cd/㎡
Contrast: 1000:1
Aspect Ratio: 16:9
Angle of view: 178°
DICOM standard brightness: 300 cd/㎡
Film holder: Integrated
Signal input: DVI ×1, DP ×1
Signal output: DP ×1
Voltage: 220 VAC
Power consumption: 33 W
Standby power consumption: ≤ 0.5 W
Size: 528 × 190 × 641 mm (with base) / 380 × 71 × 641 mm (without base)
Weight: 8.6 kg (with base) / 6.6 kg (without base)

Model MDS-C3006B - Product Specification
Model: MDS-C3006B
Display size: 30 inch
Pixel: 6MP
Resolution: 3280×2048
Pixel pitch: 0.197 (H) × 0.197 (V) mm
Grayscale or Color: Color
Max. brightness: 1050 cd/㎡
Contrast: 1000:1
Aspect Ratio: 16:10
Angle of view: 178°
DICOM standard brightness: 400 cd/㎡
Film holder: Integrated
Signal input: DVI ×2, DP ×2
Signal output: DP ×1
Voltage: 220 VAC
Power consumption: 84 W
Standby power consumption: ≤ 0.5 W
Size: 522 × 259 × 689 mm (with base) / 460 × 86 × 689 mm (without base)
Weight: 12.8 kg (with base) / 10.5 kg (without base)

Product Description
The MDS-C2704B (4MP) and MDS-C3006B (6MP) are intended for diagnostic modalities including X-ray, CT, MRI and, for the 6MP model, mammography. The integrated 16-bit LUT and DICOM calibration deliver consistent grayscale accuracy across the brightness range, supporting diagnostic reading and clinical review workflows.

Features

• Built-in 16-bit Look-Up Table (LUT) for accurate grayscale and color reproduction calibrated to DICOM standards
• Brightness stabilization system for real-time correction to ensure stable output
• DICOM stepless dimming with dynamic adjustment algorithm across full brightness range
• Multi-split screen mode (supports up to four split screens) with independent display curve and brightness control per split
• Brighten mode (hotkey) to temporarily increase brightness for local detail visibility; hotkey customizable
• Integrated film holder
• Multiple signal inputs and outputs (DVI, DisplayPort) to interface with imaging equipment and PACS

Characteristics / Technical specifications

• Series: MDS-C series
• Models: MDS-C2704B (27", 4MP, 2560×1440) and MDS-C3006B (30", 6MP, 3280×2048)
• Pixel pitch: 0.233×0.233 mm (MDS-C2704B); 0.197×0.197 mm (MDS-C3006B)
• Max. brightness: 500 cd/㎡ (C2704B); 1050 cd/㎡ (C3006B)
• DICOM standard brightness: 300 cd/㎡ (C2704B); 400 cd/㎡ (C3006B)
• Contrast ratio: 1000:1
• Viewing angle: 178°
• Aspect ratio: 16:9 (C2704B); 16:10 (C3006B)
• Signal input: DVI, DisplayPort (see model-specific counts)
• Signal output: DisplayPort ×1
• Power: 220 VAC; typical consumption 33 W (C2704B) / 84 W (C3006B); standby ≤ 0.5 W
• Physical dimensions and weights vary by model (see model-specific sizes and weights)
• Designed for radiology diagnostic imaging (X-ray, CT, MRI) and mammography (MDS-C3006B)
