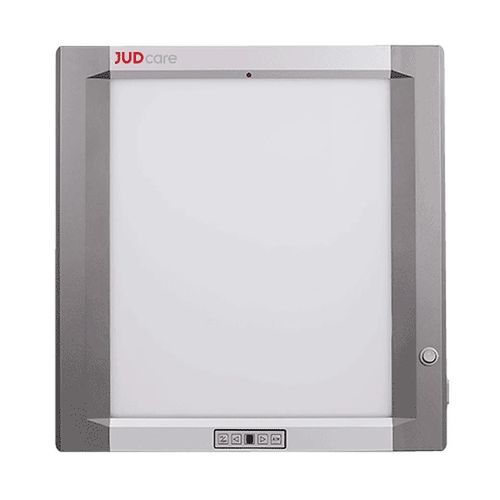

1-screen X-ray film viewer CFV series

2-screen3-screen4-screen

Overview
The JUDcare LED X-ray film viewer (negatoscope) is engineered to deliver exceptional clarity and precision for modern diagnostic environments. Designed for radiology professionals, this medical light box (CFV Series) utilizes ultra-bright matrix LED technology to provide uniform illumination and high contrast, ensuring accurate visualization of X-ray and mammography films. Available in single-panel, dual-panel, triple-panel and quadruple-panel configurations to meet diverse clinical imaging needs.

Key Features

• Ultra-bright matrix LED light source
• High light uniformity >98%
• High brightness: >15,000 lux (>4,500 cd/m2)
• Long LED life: >100,000 hours
• Multi-panel configurations: single/dual/triple/quadruple
• Thin design (45mm) optimized for heat dissipation and stability
• Lightweight and durable construction: acrylic front frame with aluminum-alloy back
• Film sensor included
• Wide input voltage range: AC100-240V, 50/60Hz

Product Specification
Model: CFV 01 / 02 / 03 / 04
Frame sizes: 550 x 510 x 45 mm; 850 x 510 x 45 mm; 1200 x 510 x 45 mm; 1570 x 510 x 45 mm
Viewing area: 14'' x 17'', 28'' x 17'', 42'' x 17'', 56'' x 17''
Screen brand: Mitsubishi
Film sensor: Yes
Light source: Matrix LED
LED life: >100,000 hours
Light uniformity: >98%
Brightness: >15,000 lux (>4,500 cd/m2)
Power supply: AC100-240V, 50/60Hz
Power consumption: 15W, 30W, 45W, 60W (depending on model)
Package weight: 5 kg, 7 kg, 10 kg, 14 kg (depending on model)
Package size: 620 x 630 x 150 mm; 960 x 630 x 150 mm; 1320 x 630 x 150 mm; 1710 x 630 x 150 mm

Product Description
The CFV series LED negatoscope provides consistent, high-contrast viewing for radiology and mammography films. It features a full LED dot-matrix layout (many LEDs per section) to guarantee regional adaptive illumination and consistent luminance across the viewing area. The thin 45 mm body improves heat dissipation and system stability while the aluminum alloy back and acrylic frame ensure a lightweight yet durable assembly suitable for hospitals, clinics and imaging centers.

Caractéristiques / Spécifications techniques

• Model series: CFV series (CFV 01 / 02 / 03 / 04)
• Viewing area sizes: 14"x17", 28"x17", 42"x17", 56"x17"
• Frame thickness: 45 mm
• Light source: Matrix LED
• Brightness: >15,000 lux (>4,500 cd/m2)
• Light uniformity: >98%
• LED life expectancy: >100,000 hours
• Power supply: AC100-240V, 50/60Hz
• Power consumption options: 15W / 30W / 45W / 60W
• Construction materials: Acrylic front frame, aluminum-alloy back
