Medical display IVS-8MP

diagnosticmedical imagingmammography

Overview

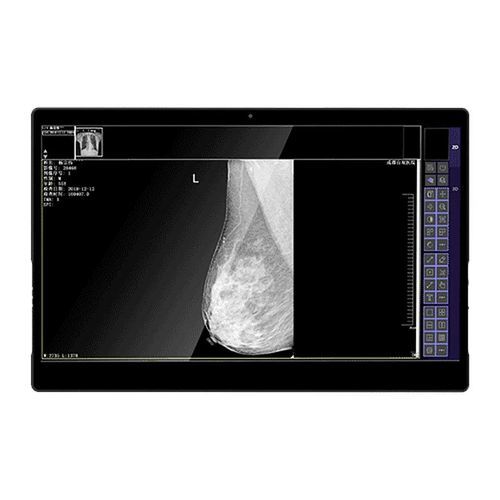

The IVS-8MP Portable Diagnostic Monitor is a plug-and-play, battery-powered medical display with a 14.1-inch 8MP panel (3840×2160) designed for mobile diagnostic reading. It operates independently from hospital information systems (HIS), enabling remote film reading, diagnosis, report writing and auditing in clinical and field settings.

Product Specification
Model: IVS-8MP
Display size: 14.1 inch
Pixel: 8MP
Resolution: 3840×2160
Pixel pitch: 0.233 (H) × 0.233 (V) mm
Display color or grayscale: 1064M (8bit +2bit FRC)
Grayscale or Color: Color
Max. brightness: 500 cd/㎡
Contrast: 1500:1
CPU mode: RK3399
CPU speed: 1.8GHz max
Processor: Dual-core Cortex-A72 and Quad-core Cortex-A53
Memory: 4G
eMMC: 64G
Communication: WIFI and Bluetooth
Data transmission: Type-A USB2.0*1
Camera: USB camera (front) with MIC 500W
Operation system: Hongding OS 1.0
Power supply: built-in lithium battery 7.4V 7000mAh
Working time: 2-2.5 hours
Size: 326×212×12 mm
Weight: 1.05 kg

Product Description
Designed for dynamic healthcare environments, this portable diagnostic monitor combines high-resolution imaging with lightweight construction to support precise image review and diagnosis. It is suitable for integration into mobile workstations and supports connectivity with PACS and cloud services for seamless image access and reporting. The device's DICOM-compliant output and calibrated grayscale ensure consistent presentation of medical images across settings.

Use Scenarios / Key Features

• Portable: 14.1-inch screen and lightweight design for remote operation, home visits and travel.
• High resolution: 8MP panel with 10-bit grayscale support for accurate lesion detection, including breast imaging.
• Professional: Developed to comply with DICOM international standards for medical image display.
• Software integration: Compatible with cloud film and remote diagnosis platforms to support routine tele-reading workflows.

Technical Specifications

• Model: IVS-8MP
• Display size: 14.1 inch
• Pixel / Grayscale depth: 8MP; 1064M (8bit +2bit FRC)
• Resolution: 3840×2160
• Pixel pitch: 0.233 (H) × 0.233 (V) mm
• Max. brightness: 500 cd/㎡
• Contrast ratio: 1500:1
• SoC / CPU: RK3399, up to 1.8 GHz (Dual-core Cortex-A72 + Quad-core Cortex-A53)
• Memory: 4 GB RAM
• Storage: 64G eMMC
• Connectivity: Wi-Fi and Bluetooth
• Data ports: Type-A USB 2.0 ×1
• Camera: Front USB camera with MIC (500W)
• OS: Hongding OS 1.0
• Battery / Power: Built-in lithium battery 7.4V 7000mAh
• Battery life: 2–2.5 hours
• Dimensions: 326 × 212 × 12 mm
• Weight: 1.05 kg
