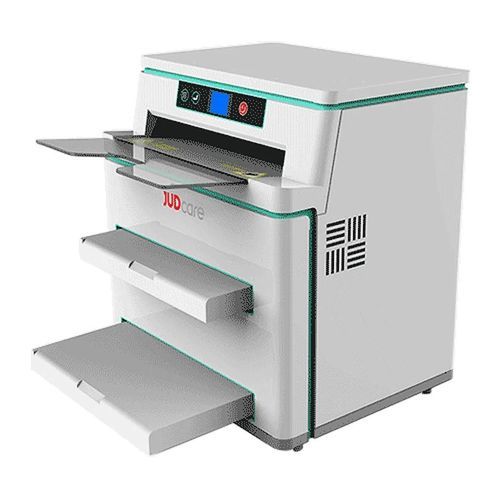

X-ray film printer MDST-22

Product overview
The MDST-22 is a medical dry film printer for diagnostic imaging departments. It supports direct printing from MRI, CT, DR, CR and DSA modalities and accepts Fujifilm plates. The unit provides two supply trays for online printing of two film sizes, daylight film loading and automatic density adjustment to streamline film production.

Key specifications

• Model: MDST-22
• Spatial resolution: 300 dpi
• Contrast resolution: 12 bits
• Media type: Dry thermal film
• Supported media sizes: 8x10in, 10x12in, 11x14in, 14x17in
• Film trays: 2 supply trays (100 sheets per tray)
• Film loading: Daylight film loading
• Density adjustment: Automatic
• Throughput: 8x10in — 90 sheets/hour; 14x17in — 50 sheets/hour
• Time to operate: 3 mins (at 25℃)
• Hard disk: 4GB
• Memory: 512M
• Power: 100~240V, 50/60Hz
• Power consumption: 500VA
• Imager dimensions (W×D×H): 553×440×615 mm
• Imager weight: 64 kg

Applications

• Radiology departments and imaging centers requiring reliable film output for diagnostic review
• Hospitals and clinics that use MRI, CT, DR, CR and DSA modalities
• Environments needing mixed-size film runs without manual reloading

Features / Scenarios

• Two input media trays — simultaneous online availability of two film sizes to reduce interruptions
• Safe daylight loading — minimizes risk of accidental exposure during film replacement
• Direct digital printing — compact design for direct printing from modalities and PACS workflows
• Auto-calibration — built-in density meter for automatic image density adjustment and consistent output
• Fujifilm plate compatibility — supports Fujifilm plate workflow for straightforward integration

Technical specifications

• Model: MDST-22
• Spatial resolution: 300 dpi
• Contrast resolution: 12 bits
• Media type: Dry thermal film
• Media sizes supported: 8x10in, 10x12in, 11x14in, 14x17in
• Film trays: 2 supply trays (100 sheets per tray)
• Film loading: Daylight film loading
• Density adjustment: Automatic
• Throughput: 8x10in — 90 sheets/hour; 14x17in — 50 sheets/hour
• Time to operate: 3 mins (at 25℃)
• Hard disk: 4GB
• Memory: 512M
• Power: 100~240V, 50/60Hz
• Power consumption: 500VA
• Imager dimensions (W×D×H): 553×440×615 mm
• Imager weight: 64 kg
