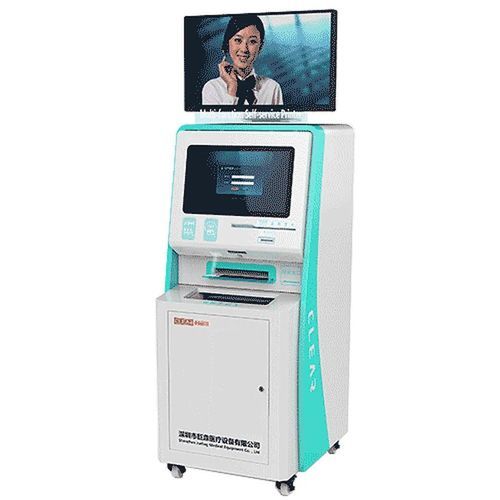

X-ray film printer SDP-2C

Product Overview
SDP-2C self-service printer enables fast report and film printing via code scanning—reducing staff workload and patient wait times to improve radiology and hospital throughput. Designed for hospital environments, the SDP-2C supports patient-initiated printing of reports and diagnostic films using QR code scan-and-print workflow.

Key Features

• QR code printing for patient self-service and streamlined collection
• Reduces patient wait times for report and film retrieval
• Automates printing tasks to reduce radiology staff workload
• Integrates into hospital workflow to improve operational efficiency

Product Specification
Model: SDP-2C
Display size: 21.5 inch touch screen
Spatial resolution: 300 dpi or 508 dpi (optional)
Contrast resolution: 12 bits or 14 bits (optional)
Media type: Dry thermal film
Media size: 8x10 in, 10x12 in, 11x14 in, 14x17 in
Film trays: 2 supply trays
Capacity of supply trays: 100 sheets per supply tray
Film loading: Daylight film loading
Density adjustment: Automatic
Printing method: Scan code to print (QR code)
Time to operate: ~3 mins (room temperature 25℃)
Hard disk: 500 GB
Memory: 4 GB
Power: 100~240 V, 50/60 Hz
Report printed: Laser printer (for reports)
Imager dimension: 850 x 612 x 763 mm
Imager weight: 190 kg

Product Description
The SDP-2C is a compact self-service printing station intended for clinical settings. Patients scan a provided code to print diagnostic reports and films independently, decreasing counter congestion and enabling staff to focus on clinical tasks. The unit supports common dry thermal film sizes and offers automated density adjustment and daylight loading to simplify operation.

Characteristics / Technical specifications

• Model: SDP-2C
• Display: 21.5 inch touch screen
• Spatial resolution: 300 dpi or 508 dpi (optional)
• Contrast resolution: 12 bits or 14 bits (optional)
• Media: Dry thermal film (sizes: 8x10, 10x12, 11x14, 14x17)
• Film trays: 2 supply trays (100 sheets per tray)
• Film loading: Daylight film loading
• Density adjustment: Automatic
• Printing method: Scan code to print (QR code printing)
• Operation time: ~3 minutes (at 25℃)
• Storage: 500 GB hard disk
• Memory: 4 GB
• Power: 100~240 V, 50/60 Hz
• Report printing: Laser printer (for reports)
• Dimensions (imager): 850 x 612 x 763 mm
• Weight (imager): 190 kg
