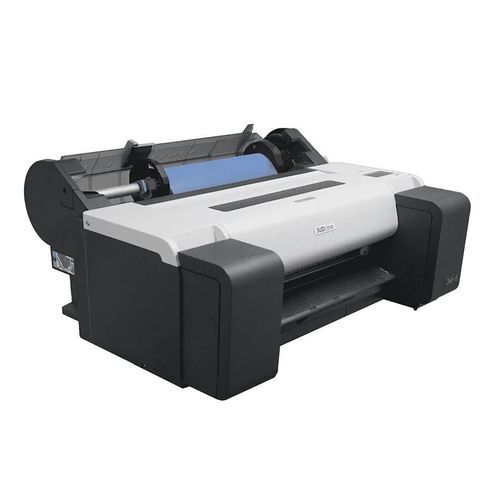

X-ray film printer 366-5

Product overview
The 366-5 dry inkjet film printer supports direct DICOM printing via included free DICOMPrint software. Designed for radiology and PET imaging departments, it prints black-and-white and color PET films from roll media, offering high spatial resolution and efficient media handling for clinical workflows.

Key features

• Direct DICOM printing with included DICOMPrint software for printing from imaging workstations
• High spatial resolution (2400x1200 dpi) and 14-bit contrast for diagnostic images
• Roll media design to prevent film sticking and enable long-format/whole-body prints
• Supports both black-and-white and color PET film printing
• Multiple media sizes with automatic cutting to finished print size
• Flexible ink supply system with 5 tanks, cartridges available in 130 ml and 300 ml
• Network connectivity: high-speed USB, wired LAN and Wi‑Fi

Product specifications (table)

• Model: 366-5
• Spatial resolution: 2400x1200 dpi
• Contrast resolution: 14 bits
• Media type: Dry inkjet film (roll)
• Supported sizes: 8x10in, 10x12in, 11x14in, 14x14in, 14x17in, A4, A3
• Film supply: By roll; daylight film loading
• Maximum width: 17 inch
• Throughput: 8x10in — 120 sheets/hour; 14x17in — 40 sheets/hour
• Print color: Black or color
• Ink tanks: 5; cartridges 130 ml or 300 ml
• Power: 100–240 V, 50/60 Hz
• Connectivity: High-speed USB, Wired LAN, Wi-Fi
• Dimensions (W×D×H): 982×748×439 mm
• Weight: 41 kg

Product description
The 366-5 integrates with free DICOMPrint software to enable direct printing of DICOM images from any imaging workstation. Its roll-based dry inkjet system reduces film handling issues, supports long-format prints for whole-body studies, and delivers consistent image detail suitable for diagnostic review while maintaining cost-effective operation.

Applications / Scenarios

• Full-size and long-format medical film printing, including whole-body PET outputs
• Direct DICOM printing from PACS/workstations using bundled software
• High-throughput clinical printing for radiology departments
• Roll media reduces film sticking and simplifies loading for continuous operation

Technical specifications

• Model: 366-5
• Resolution: 2400x1200 dpi
• Contrast: 14 bits
• Media: Dry inkjet film, roll supply
• Max print width: 17 inch
• Throughput examples: 8x10 — 120 sheets/hour; 14x17 — 40 sheets/hour
• Ink system: 5 tanks; cartridges 130 ml/300 ml
• Power: 100–240 V, 50/60 Hz
• Connectivity: High-speed USB, Wired LAN, Wi‑Fi
• Dimensions: 982×748×439 mm
• Weight: 41 kg
