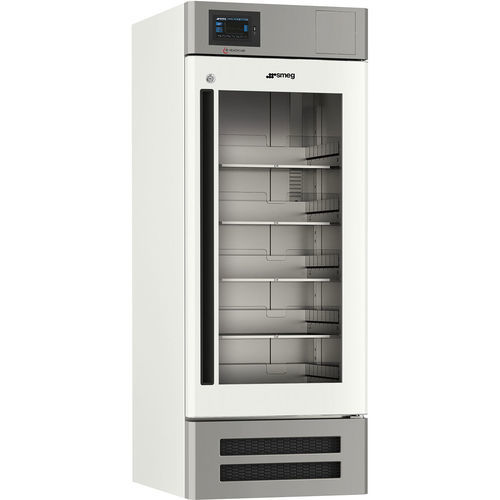

Blood bank refrigerator FE45G1EVO

for pharmaciesfor laboratoryhospital

Overview
Blood bank refrigerator designed by Smeg Instruments for clinical and laboratory environments. Capacity 450 L. Intended for hospital pharmacy and analysis laboratory use. Medical device compliant with (EU) Regulation 2017/745 (Annex IX) class IIa and conforming to EN 13277 (ex DIN 58345).

Intended use

• Storage of whole blood and plasma at controlled temperatures for clinical and laboratory workflows.
• Designed for hospital pharmacies, blood banks and analysis laboratories requiring regulated storage and traceability.

Key features

• Temperature range: +2/+6 °C, safety thermostat set to +2 °C (DIN58345 compliance).
• Capacity: 450 L with 5 standard drawers.
• Datalogger and USB port for export of recorded data.
• Battery backup for alarm central unit and free contact for remote alarm.
• Refrigerant: R290 (CFC free). Insulation thickness: 60 mm. Ventilated vaporisation.
• Internal LED lighting; reversible glass door; 1 door; 4 wheels and 2 adjustable feet.
• Noise level: 45 dBA.

Interface and alarms

• 7" LED touch screen with real-time temperature graph, resolution 800x480.
• Alarm indicator on display, audible and visible alarms.
• Free contact for remote alarm and USB port for data download.

Construction and materials

• Door: glass.
• Chamber material: Scotch Brite stainless steel.
• External structure: hot galvanised steel, coated with white PVC film (non-corrosive, non-toxic).

Performance

• Noise level 45 dBA (measured).

Electrical connection

• Voltage: 230 V, 50 Hz.
• Plug: (F;E) Schuko.

Logistics

• External dimensions: 70 x 80 x 184 cm.

Accessories included

• Standard drawers: 5.

Compliance and certifications

• Medical device according to (EU) Regulation 2017/745 (Annex IX) class IIa.
• Conformity to EN 13277 (ex DIN 58345).
• DMS Reference: Version 02 - 24/06/2025.

Technical specifications

• Type: Blood bank refrigerator
• Model: FE45G1EVO
• Brand: Smeg Instruments
• Capacity: 450 L
• Temperature range: +2/+6 °C
• Safety thermostat: +2 °C (DIN58345 compliance)
• Battery backup for alarms: Standard
• Datalogger: Yes
• Lock: Standard
• Lateral passing hole: Optional
• Free contact for remote alarm: Standard
• Insulation: 60 mm
• Vaporisation: Ventilated
• Refrigerant gas: R290
• CFC Free: Yes
• Internal lighting: LED
• Reversible door: Yes
• Noise level: 45 dBA
• Voltage: 230 V, 50 Hz
• Plug: (F;E) Schuko
• Display: 7" LED touch screen, real-time temperature graph, resolution 800x480
• Alarms: audible, visible, indicator on display
• USB port: Yes
• Door material: Glass
• Chamber material: Scotch Brite stainless steel
• External material: Hot galvanised steel coated with white PVC
• Doors quantity: 1
• Wheels: 4
• Feet: 2
• External dimensions: 70 x 80 x 184 cm
• Standard drawers included: 5
