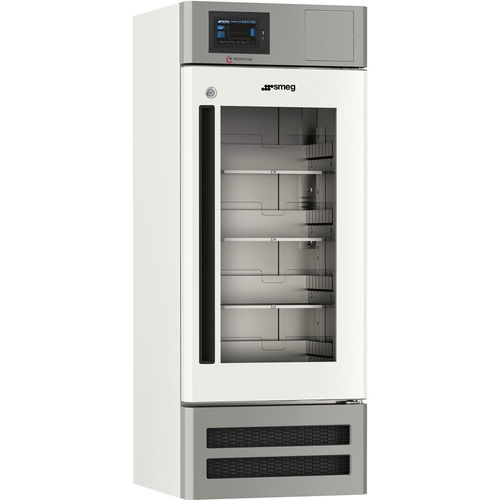

Blood bank refrigerator FE20G1EVO

for laboratoryfor pharmaciesfor healthcare facilities

Overview
Blood bank refrigerator designed by Smeg Instruments. Medical device compliant with (EU) Regulation 2017/745 (Annex IX) class IIa. Out of stock status indicated on the page.

Target

• Instrument solutions: Health care
• Health care sector: Hospital pharmacy; Analysis laboratory

Main characteristics
Type: Blood bank refrigerator
Capacity: 200 l
Temperature range: +2/+6 °C
Safety thermostat +2°C DIN58345 Compliance: Standard
Battery backup for alarms electronic control unit: Standard

Technical Features

• Temperature range: +2/+6 °C
• Datalogger: Yes
• Capacity: 200 l
• Lock: Standard
• Lateral passing hole: Optional
• Safety thermostat +2°C DIN58345 Compliance: Standard
• Battery backup for alarms electronic control unit: Standard
• Free contact for remote alarm: Standard
• Insulation: 60 mm
• Vaporisation: Ventilated
• Refrigerant gas: R290
• CFC free: Yes
• Internal lighting: LED
• Reversible door: Yes

Performance / Energy Label
Noise level: 45 dBA

Electrical Connection
Voltage: 230V, 50Hz
Plug: (F;E) Schuko

Manuals and Certifications
Medical device according to (EU) Regulation 2017/745 (Annex IX) class IIa: Yes
Conformity to EN 13277 (ex DIN 58345): Yes
DMS Reference: Version 02 - 24/6/2025

Interface

• Display: with graph of temperature in real time, LED 7'' touch screen, resolution 800x480
• Alarm indicator on display: Yes
• Audible alarm: Yes
• Visible alarm: Yes
• USB port: Yes

Construction

• Door: Glass
• Chamber material: Scotch Brite stainless steel
• External material of the machine: Hot galvanised steel non-corrosive and non-toxic, coated with white PVC
• Doors quantity: 1
• Wheels: 4
• Feet: 2

Logistic Information
External dimensions: 60 x 60 x 156 cm

Accessories included

• Standard drawers: 4

Technical specifications

• Model: FE20G1EVO
• Type: Blood bank refrigerator
• Capacity: 200 l
• Temperature range: +2/+6 °C
• Safety thermostat +2°C DIN58345 Compliance: Standard
• Datalogger: Yes
• Battery backup for alarms electronic control unit: Standard
• Free contact for remote alarm: Standard
• Insulation: 60 mm
• Vaporisation: Ventilated
• Refrigerant gas: R290 (CFC free)
• Internal lighting: LED
• Reversible door: Yes
• Noise level: 45 dBA
• Voltage: 230V, 50Hz
• Plug: (F;E) Schuko
• Display: LED 7'' touch screen, 800x480, temperature graph in real time
• Alarms: visible and audible, alarm indicator on display
• USB port: Yes
• Door: Glass
• Chamber material: Scotch Brite stainless steel
• External material: Hot galvanised steel coated with white PVC
• Doors quantity: 1
• Wheels: 4
• Feet: 2
• External dimensions: 60 x 60 x 156 cm
• Accessories included: 4 standard drawers
