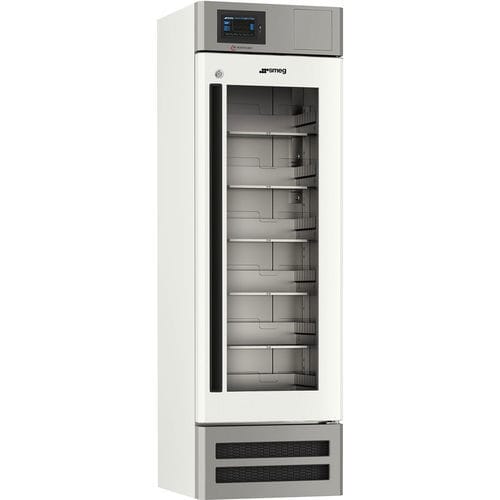

Blood bank refrigerator FE30G1EVO
upright1-doorwith glass door

Blood bank refrigerator - FE30G1EVO - SMEG Instruments - upright / 1-door / with glass door
Blood bank refrigerator - FE30G1EVO - SMEG Instruments - upright / 1-door / with glass door
Add to favorites
Compare this product
Go to the SMEG Instruments website for more information

Characteristics

Applications
blood bank
Configuration
upright
Number of doors
1-door
Door type
with glass door
Power source
electric
Other characteristics
with drawer, with natural refrigerant, stainless steel
Capacity

Max.: 300 l
(79.25 gal)

Min.: 300 l
(79.25 gal)

Temperature range

Max.: 6 °C
(42.8 °F)

Min.: 2 °C
(35.6 °F)

Width

Max.: 600 mm
(23.6 in)

Min.: 600 mm
(23.6 in)

Depth

Max.: 60 cm
(24 in)

Min.: 60 cm
(24 in)

Height

Max.: 196 cm
(77.2 in)

Min.: 196 cm
(77.2 in)

Description

Overview
  • Type: Blood bank refrigerator
  • Model code: FE30G1EVO
  • Capacity: 300 L
  • Temperature range: +2/+6 °C
  • Safety thermostat +2°C (DIN 58345) compliance: Standard
  • Battery backup for alarms electronic control unit: Standard
  • Medical device according to (EU) Regulation 2017/745 (Annex IX) class IIa: Yes


Technical features
  • Temperature control: +2/+6 °C
  • Datalogger: Yes
  • Lock: Standard
  • Lateral passing hole: Optional
  • Free contact for remote alarm: Standard
  • Insulation thickness: 60 mm
  • Evaporation: Ventilated
  • Refrigerant gas: R290 (CFC free)
  • Internal lighting: LED
  • Reversible door: Yes


Performance / Energy Label
  • Noise level: 45 dBA


Electrical connection
  • Voltage: 230 V, 50 Hz
  • Plug: (F;E) Schuko


Interface
  • Display: 7'' LED touch screen with real-time temperature graph, resolution 800x480
  • Alarm indicator on display: Yes
  • Audible alarm: Yes
  • Visible alarm: Yes
  • USB port: Yes


Construction
  • Door: Glass
  • Chamber material: Scotch Brite stainless steel
  • External material: Hot galvanised steel, non-corrosive and non-toxic, coated with white PVC
  • Number of doors: 1
  • Wheels: 4
  • Feet: 2


Logistic information
  • External dimensions: 60 x 60 x 196 cm


Manuals and certifications
  • Medical device according to (EU) Regulation 2017/745 (Annex IX) class IIa: Yes
  • Conformity to EN 13277 (ex DIN 58345): Yes
  • DMS Reference: Version 02 - 24/6/2025


Accessories included
  • Standard drawers: 6


Technical specifications
  • Type: Blood bank refrigerator
  • Model: FE30G1EVO
  • Capacity: 300 L
  • Temperature range: +2/+6 °C
  • Safety thermostat +2°C (DIN 58345): Standard
  • Battery backup for alarms electronic control unit: Standard
  • Datalogger: Yes
  • Lock: Standard
  • Lateral passing hole: Optional
  • Free contact for remote alarm: Standard
  • Insulation: 60 mm
  • Evaporation: Ventilated
  • Refrigerant gas: R290 (CFC free)
  • Internal lighting: LED
  • Reversible door: Yes
  • Noise level: 45 dBA
  • Voltage: 230 V, 50 Hz
  • Plug: (F;E) Schuko
  • Display: 7'' LED touch screen with real-time temperature graph, resolution 800x480
  • Alarm: audible and visible, alarm indicator on display
  • USB port: Yes
  • Door material: Glass
  • Chamber material: Scotch Brite stainless steel
  • External material: Hot galvanised steel coated with white PVC
  • Number of doors: 1
  • Wheels: 4
  • Feet: 2
  • External dimensions: 60 x 60 x 196 cm
  • Accessories included: 6 standard drawers
  • DMS Reference: Version 02 - 24/6/2025
