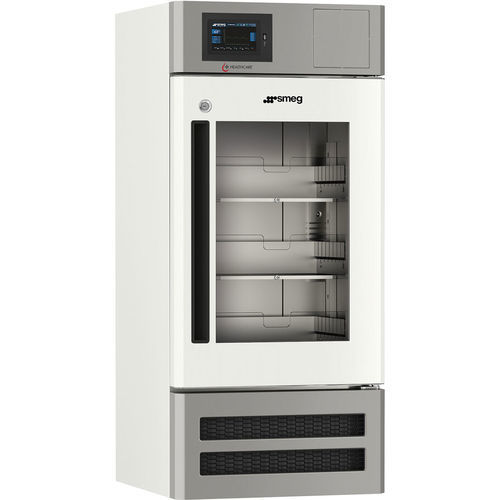

Blood plasma refrigerator FE15G1EVO

blood bankfor healthcare facilitiesfor hospitals

Overview
Blood and plasma storage refrigerator designed for Health Care applications, suitable for hospital pharmacy and clinical laboratories. Classified as a Medical Device under Regulation (EU) 2017/745 MDR (Annex IX) Class IIa.

Main features

• Type: Blood bank refrigerator
• Capacity: 150 L
• Temperature range: +2/+6 °C
• Compressor safety cut-off thermostat at +2 °C: included
• Buffer battery for alarm acquisition unit: included
• Datalogger: Yes
• Lock: included
• Side pass-through port: optional
• Clean contact for remote alarm: included
• Insulation: 60 mm
• Evaporation: ventilated
• Refrigerant gas: R290
• CFC Free: Yes
• Interior lighting: LED
• Reversible door: Yes

Interface and alarms

• Display: real-time temperature graph, touch screen, 7'' color LED, resolution 800x480
• Alarm indicator on display: Yes
• Audible alarm: Yes
• Visual alarm: Yes
• USB port: Yes

Construction and materials

• Door: Glass
• Chamber material: Stainless steel with Scotch Brite finish
• External structure material: Hot-dip galvanized anti-corrosion sheet, non-toxic, coated with white PVC film
• Number of doors: 1
• Castors: 4
• Feet: 2

Performance / Energy label

• Noise level: 45 dBA

Electrical connection

• Supply voltage: 230 V, 50 Hz
• Plug: (F;E) Schuko

Logistic information

• External dimensions: 60 x 60 x 136 cm

Accessories included

• Standard drawers: 3

Manuals and certifications

• Medical Device according to Regulation (EU) 2017/745 MDR (Annex IX) Class IIa: Yes
• Conformity to EN 13277 (ex DIN 58345): Yes

Technical specifications

• Type: Blood bank refrigerator
• Capacity: 150 L
• Temperature range: +2/+6 °C
• Compressor safety cut-off thermostat at +2 °C: included
• Buffer battery for alarm acquisition unit: included
• Datalogger: Yes
• Lock: included
• Side pass-through port: optional
• Clean contact for remote alarm: included
• Insulation: 60 mm
• Evaporation: ventilated
• Refrigerant gas: R290
• CFC Free: Yes
• Interior lighting: LED
• Reversible door: Yes
• Display: 7'' touch LED, resolution 800x480
• Alarms: visual and audible, alarm indicator on display
• USB port: Yes
• Noise level: 45 dBA
• Supply voltage: 230 V, 50 Hz
• Plug: (F;E) Schuko
• Chamber material: Stainless steel with Scotch Brite finish
• External structure material: Hot-dip galvanized sheet coated in white PVC film
• Number of doors: 1
• Castors: 4
• Feet: 2
• External dimensions: 60 x 60 x 136 cm
• Medical device class: IIa (MDR EU 2017/745)
• Conformity EN 13277 (ex DIN 58345): Yes
