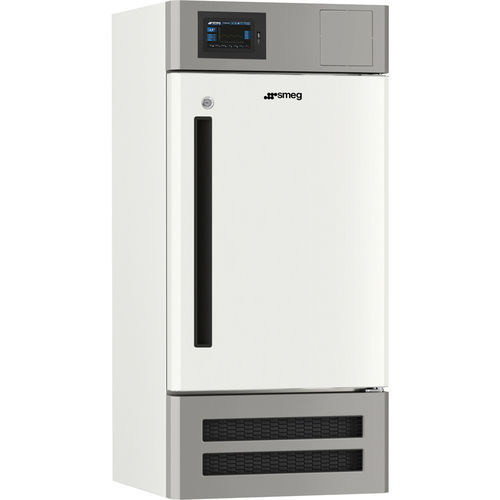

Healthcare facility freezer C30S16C1EVO

for laboratoryfor pharmaciesfor hospitals

Overview
Refrigeration system designed for Life Science and Health Care applications; freezer with advanced control and real-time monitoring connectivity.

Applications

• Instrument solutions: Life Science; Health Care
• Life Science sector: Laboratory; Pharmaceutical; Petrochemical industry; Food industry; Small laboratories
• Health Care sector: Central sterilization units; Care homes; Hospital pharmacy; Clinical analysis laboratory

Type
Freezer

Technical features

• Temperature range: -10 / -32 °C
• Datalogger: Yes
• Capacity: 160 L
• Lock: Standard
• Side pass-through port: Optional
• Backup battery for alarm acquisition unit: Optional
• Remote alarm dry contact: Standard
• Insulation thickness: 80 mm
• Evaporation: Static
• Refrigerant gas: R290
• CFC free: Yes
• Interior lighting: LED

Performance / Energy label

• Noise level: 45 dBA

Electrical connection

• Supply voltage: 230V, 50Hz
• Plug: (F;E) Schuko

Manuals and certifications

• Compliance with EN 13277 (ex DIN 58345): Yes, subject to installation of BTEVO and TERMDIN

Also available
60 Hz version available

Interface

• Display: Touch screen, 7" color LED, 800x480 resolution, real-time temperature graph
• WiFi connectivity: Yes, with real-time cloud connection
• Alarm indicator on display: Yes
• Audible alarm: Yes
• Visual alarm: Yes
• USB port: Yes

Construction

• Door: Solid
• Inner chamber material: Stainless steel with Scotch Brite finish
• Outer structure material: Hot-dip galvanized sheet, anti-corrosion and non-toxic, coated with white PVC film
• Number of doors: 1
• Castors: 4
• Feet: 2

Logistics information
External dimensions: 64 x 62 x 140 cm

Included accessories

• Standard drawers: 3

Optional

• BTEVO (Backup battery - EVO series)

Technical specifications

• Model: C30S16C1EVO
• Type: Freezer for Life Science / Health Care applications
• Internal capacity: 160 L
• Temperature range: -10 to -32 °C
• Refrigerant: R290 (CFC free)
• Evaporation: Static
• Insulation: 80 mm
• Lock: Standard
• Integrated datalogger
• Alarms: audible, visual, display indicator, dry contact for remote alarm
• Connectivity: WiFi with real-time cloud
• Display: 7" color touchscreen, 800x480 with temperature graph
• Integrated USB port
• Voltage: 230V 50Hz (60 Hz version available)
• Plug: (F;E) Schuko
• Materials: inner chamber in stainless steel Scotch Brite; outer structure in galvanized sheet coated with white PVC
• External dimensions: 64 x 62 x 140 cm
• Noise level: 45 dBA
• Included accessories: 3 drawers
• Optional available: BTEVO (backup battery)
