Pharmacy freezer C30S22C1EVO
for clinical laboratorieshospitallaboratory

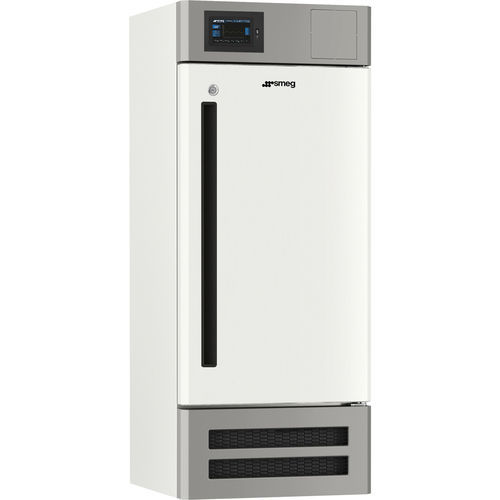

Pharmacy freezer - C30S22C1EVO - SMEG Instruments - for clinical laboratories / hospital / laboratory
Pharmacy freezer - C30S22C1EVO - SMEG Instruments - for clinical laboratories / hospital / laboratory
Add to favorites
Compare this product
Go to the SMEG Instruments website for more information

Characteristics

Applications
for pharmacies, for clinical laboratories, hospital, laboratory, medical
Configuration
on casters, upright
Number of doors
1-door
Power source
electric
Other characteristics
low-temperature, with natural refrigerant, with drawer, stainless steel
Capacity

220 l
(58.12 gal)

Temperature range

Max.: -10 °C
(14 °F)

Min.: -32 °C
(-25.6 °F)

Width

60 cm
(23.6 in)

Depth

60 cm
(23.6 in)

Height

154 cm
(60.6 in)

Number of decibels

45 dB

Description

Intended use
  • Solutions: Life science and Health care environments
  • Life science applications: Laboratories, pharmaceutical production, petrochemical labs, food control labs, small research labs
  • Health care applications: Sterilization units, care homes, hospital pharmacy, clinical analysis labs


Type
  • Freezer for laboratory and medical storage


Technical features
  • Temperature range: -10 / -32 °C
  • Datalogger: Yes
  • Internal capacity: 220 L
  • Lock: Standard
  • Lateral pass-through port: Optional
  • Backup battery for alarm unit: Optional (BTEVO)
  • Remote alarm clean contact: Included
  • Insulation thickness: 80 mm
  • Evaporation: Static
  • Refrigerant gas: R290 (hydrocarbon)
  • CFC free: Yes
  • Interior lighting: LED


Performance / Acoustic
  • Noise level: 45 dBA


Electrical connection
  • Supply voltage: 230 V, 50 Hz
  • Plug: Schuko (F;E)


Manuals and certifications
  • Compliant with EN 13277 (ex DIN 58345): Yes, after installation of BTEVO and TERMDIN


Also available
  • 60 Hz version


Interface
  • Display: 7-inch color LED touchscreen (800x480) with real-time temperature graph
  • WiFi connectivity: Yes, real-time cloud connection
  • Alarm indicator on display: Yes
  • Audible alarm: Yes
  • Visual alarm: Yes
  • USB port: Yes


Construction
  • Door: Solid (blind) door
  • Interior material: Stainless steel with Scotch-Brite finish
  • External structure: Hot-dip galvanized anticorrosive sheet, white PVC film coated
  • Number of doors: 1
  • Castors: 4
  • Adjustable feet: 2
  • Number of compressors: 1


Logistics
  • External dimensions (W x D x H): 60 x 60 x 154 cm


Included accessories
  • Standard drawers: 4


Optional
  • BTEVO (backup battery, EVO series)


Technical specifications
  • Model: C30S22C1EVO
  • Type: Freezer
  • Door: Solid
  • Usable capacity: 220 L
  • Temperature range: -10 / -32 °C
  • Datalogger: Yes
  • Lock: Standard
  • Lateral pass-through port: Optional
  • Backup battery for alarm unit: Optional
  • Remote alarm clean contact: Included
  • Insulation: 80 mm
  • Evaporation: Static
  • Refrigerant: R290
  • CFC free: Yes
  • Interior lighting: LED
  • Noise: 45 dBA
  • Supply voltage: 230 V, 50 Hz
  • Plug: Schuko (F;E)
  • EN 13277 (ex DIN 58345) compliance: Yes (with BTEVO and TERMDIN)
  • Available version: 60 Hz
  • Display: 7-inch LED touchscreen (800x480) with real-time temperature graph
  • Connectivity: WiFi with real-time cloud connection
  • Alarms: Display indicator, audible and visual
  • USB port: Yes
  • Interior material: Stainless steel (Scotch-Brite finish)
  • External structure: Hot-dip galvanized sheet, PVC white coating
  • Number of doors: 1
  • Castors: 4
  • Feet: 2
  • Compressors: 1
  • External dimensions: 60 x 60 x 154 cm
  • Included drawers: 4
