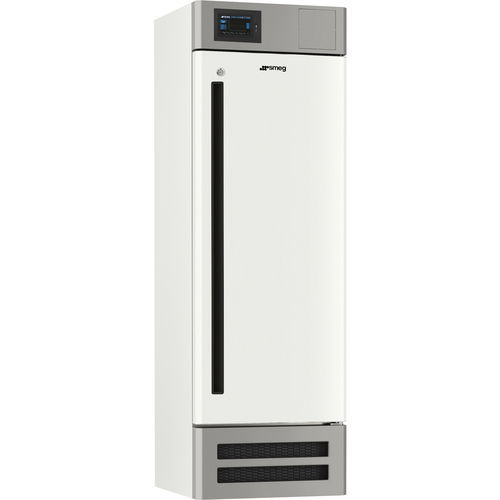

Laboratory freezer C30S32C1EVO

for pharmaciesfor healthcare facilitiesmedical

Overview
Professional freezer designed for Life Science and Health Care applications. Internal capacity 320 L, solid door, temperature range -10 to -32 °C. Equipped with datalogger and internal LED lighting. Refrigeration system uses R290; 80 mm insulation. Clean contact for remote alarm, locking as standard. Optional accessories available such as side pass-through port and backup battery for alarm acquisition unit.

Applications

• Life Science
• Health Care

Life Science sectors

• Laboratory
• Pharmaceutical
• Petrochemical industry
• Food industry
• Small laboratories

Health Care sectors

• Sterilization departments
• Nursing homes
• Hospital pharmacy
• Diagnostic laboratories

Interface and alarms
7" color touchscreen (800x480) with real-time temperature graph. WiFi connectivity with real-time cloud connection. Visual and audible alarm indicator. Integrated USB port.

Construction
Door: solid
Inner chamber material: Stainless steel with Scotch Brite finish
External structure material: hot-dip galvanized anticorrosive sheet, coated with white PVC film
Number of doors: 1
Castors: 4
Feet: 2
Number of compressors: 1

Performance
Temperature range: -10 / -32 °C
Evaporation: static
Refrigerant gas: R290
CFC Free: Yes
Noise level: 45 dBA

Electrical connection
Supply voltage: 230V, 50Hz
Plug: (F;E) Schuko

Manuals and certifications
Compliance with EN 13277 (ex DIN 58345): Yes, subject to installation of BTEVO and TERMDIN

Included accessories

• Standard drawers: 6

Optional

• Side pass-through port: Optional
• Backup battery for alarm acquisition unit: Optional (e.g. BTEVO)

Available versions
60 Hz version available

Features / Technical specifications

• Model: C30S32C1EVO
• Type: Freezer
• Capacity: 320 L
• Temperature range: -10 / -32 °C
• Datalogger: Yes
• Lock: Standard
• Clean contact for remote alarm: Standard
• Insulation: 80 mm
• Evaporation: Static
• Refrigerant gas: R290
• CFC Free: Yes
• Internal lighting: LED
• Noise level: 45 dBA
• Supply voltage: 230V, 50Hz
• Plug: (F;E) Schuko
• Inner chamber material: Stainless Steel (Scotch Brite)
• External structure material: Galvanized sheet coated in white PVC
• External dimensions: 64 x 62 x 194 cm
• Number of doors: 1
• Castors/Feet: 4 castors, 2 feet
• Number of compressors: 1
