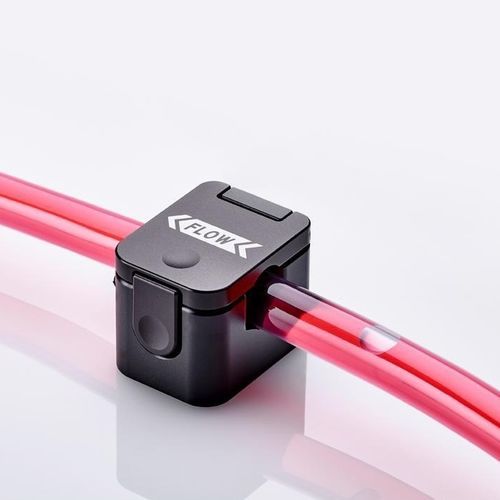

Flow sensor SONOFLOW® CO.56 Pro V2.0

medicalultrasonic

Overview
The hybrid flow-bubble sensors SONOFLOW® CO.56 Pro V2.0 combine accurate flow measurement and reliable air bubble detection in liquid-filled medical tubing. These non-invasive, contactless clamp-on sensors enable simple integration, can be clamped onto tubing without any media contact, and are designed to meet high safety requirements for medical technology. Integrated electronics and on-board processing provide a very small footprint.

Product Benefits

• Combined flow measurement and air bubble detection
• Highly accurate non-invasive fluid monitoring
• Contactless air bubble detection in liquid tubing systems
• Designed specifically for medical applications
• Long lifetime and integrated electronics (no external electronics board required)

Key Features

• Hybrid sensor: simultaneous flow measurement and air bubble detection
• Lightweight free-hanging version for hanging on tubing
• Different sensor sizes to cover a wide range of standard medical tubing diameters
• Integrated electronics board and microprocessor
• RS-485 serial interface (operating up to 12 sensors)
• Optional software tool for parameterization and visualization

Safety & Design

• Fail-safe architecture with cyclical self-tests and watchdog ensuring functional outputs in case of errors
• Initial test procedure after power-on or software reset
• High electromagnetic stability and isolation up to 1000 V
• Classification: CF (cardiac floating)
• No mechanical parts in contact with the medium (protects blood cells; sensor ensures system sterility)

Electronics & Measuring Principle

• Built-in electronics board and microprocessor
• RS-485 interface for networking and operation of multiple sensors
• Bidirectional flow measurement based on the ultrasound transit-time principle
• Air bubble detection using transmission technology

Applications

• Extracorporeal life support systems (ECLS)
• Heart-lung & ECMO machines

Technical characteristics / specifications

• Measurement Principle: Ultrasound
• Measurement Method: Combination of flow measurement and air bubble detection
• Installation: free-hanging on the tube, optional built-in
• Tubing (examples): 1/4" × 1/16" | 1/4" × 3/32" | 3/8" × 3/32"
• Material - Tube: PVC
• Material - Sensor: Aluminum
• Weight: approx. 100 g
• Interfaces: RS-485
• Protection Class: IP67
• Regulatory Safety Standards: Medical safety IEC 60601-1 (3rd edition), EMC IEC 60601-1-2 (4th edition), Acoustic emission IEC 61157, RoHS 2011/65/EU
