Gas sensor SONOCHECK® ABD

medicalminiatureultrasonic

Product description

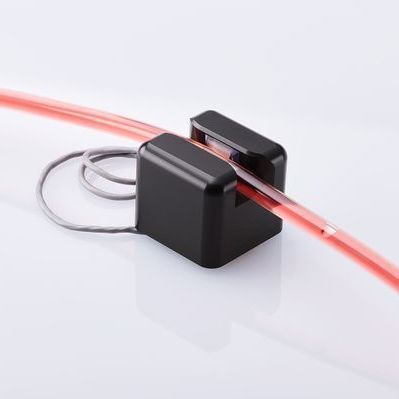

The SONOCHECK air bubble sensors, models ABD05 and ABD07, are designed for medical applications with elevated safety requirements. These sensors detect air and gas bubbles contactlessly in tubing carrying fluids such as blood, blood plasma, water or saline and also provide wet/dry indication. In medical systems the sensors primarily serve to protect patients from hazardous air infusion.

Product benefits

• Multiple safety concept options
• Contactless ultrasonic measurement
• No coupling medium required
• Compact and modular design
• Integrated electronics; no external PCB required
• Application-specific microbubble detection
• Maintenance-free and wear-free operation
• Optional software for sensor configuration and testing

Features
Easy Plug & Play integration

• Compact, modular design for applications with high hygiene requirements
• Simple insertion of tubing into the sensor without coupling medium
• Automated adaptation to dynamically changing acoustic conditions

Smart sensors with modern safety architecture

• Intelligent ultrasonic transmission technology
• Single-channel design with cyclic self-test (depending on sensor type)
• Advanced fail-safe safety architecture with continuous self-tests without blind intervals (depending on sensor type)
• Redundant design with two receiver ceramics and electronics (depending on sensor type)
• Asymmetric algorithm for dynamic adaptation and optimization of operating state

Applications

• Dialysis and transfusion
• Heart-lung and ECMO machines
• Blood separators
• Medical pumps (infusion, cardiac, nutrition, contrast media)
• Diagnostic systems
• Organ transport and transplantation medicine

Characteristics / Technical specifications

• Series/models: SONOCHECK ABD05, SONOCHECK ABD07 (part of the SONOCHECK® ABD series)
• Contactless ultrasonic detection of air and gas bubbles in tubing
• Detectable media examples: blood, blood plasma, water, saline solutions
• Wet/dry indication available
• Safety features: cyclic self-test; depending on model fail-safe architecture and redundant hardware
• Outputs: TTL logic, serial interface, PWM
• Integrated electronics; no external PCB required
• Power supply: 5 VDC
• RoHS / REACH compliant
• Maintenance-free and wear-free
