Flow sensor SONOCHECK® ALD

medicalultrasonicnon-invasive

Product Overview

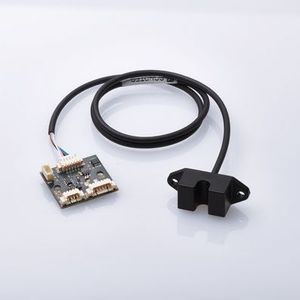

The contactless air level detector SONOCHECK® ALD monitors liquid level in infusion therapy, dialysis and parenteral nutrition. The clamp-on sensor ignores small foamy bubbles. Electronics are integrated into the compact non-invasive sensor. Design and dimensions depend on drip chamber diameter and material; sensors can be adapted and an optional easy-closing lid is available to secure the drip chamber. Certified according to ISO 13485; documentation for medical device approval available on request.

Product Benefits

• Non-invasive clamp-on measurement at drip chambers
• Reliable operation without false alarms for foam
• Available in single- and dual-channel configurations
• Wear-free operation with integrated electronics
• No external electronic board required
• Complies with medical safety standard IEC 60601-1

Key Features

• Two configurations: SONOCHECK® ALD01 (single-channel, one measuring point) and SONOCHECK® ALD02 (dual-channel, detects minimum and maximum levels)
• Versions can be adapted to match drip chamber diameter and material
• Optional easy-closing lid to secure the drip chamber
• Integrated electronics in the compact non-invasive sensor
• Meets IEC 60601-1 safety requirements for medical electrical devices

Technical Data
Measurement principle: Ultrasound
Drip chamber: Outer diameter: to be defined; Material: plastics
Response time: 50 ms
Power supply: +5 ± 0.5 VDC, ≤ 40 mA
Operating temperature: 5–60 °C
Interfaces: TTL, Serial, PWM
Standards: Safety: IEC 60601-1; EMC: IEC 60601-1-2; Biocompatibility: DIN EN 61157

Applications

• Infusion
• Dialysis
• Parenteral nutrition
• Pharmaceutical industry
