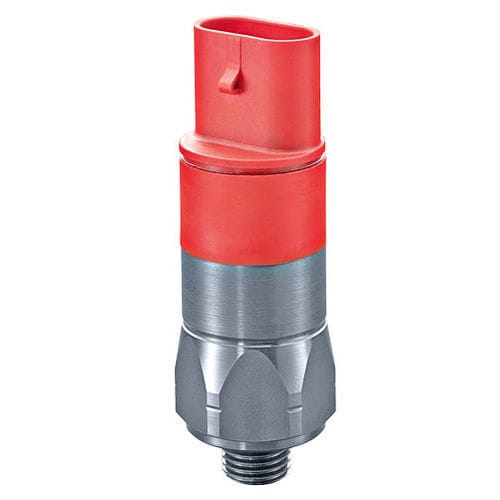

Liquid pressure switch 0133
pistonmedicaladjustable

liquid pressure switch
liquid pressure switch
liquid pressure switch
liquid pressure switch
Add to favorites
Compare this product


Characteristics

Fluid
for liquids
Technology
piston
Applications
medical
Other characteristics
adjustable, compact, rugged, plug-in, IP67, IP6K9K
Pressure range

Min.: 50 bar
(725.19 psi)

Max.: 200 bar
(2,900.75 psi)

Description

Changeover switch with silver or gold contacts Large selection of electrical plug-in types for quick attachment and reliable connection Hysteresis adjustable at factory High protection class (to IP67 or IP6K9K) Compact and rugged design in industrial environments like construction and agricultural machinery or commercial vehicles Switching point can be set on site with adjusting screw Very high overpressure safety The corresponding mating plugs are available as accessories Overpressure safety: 600 bar Pressure type: Overpressure Adjustable switching point: Yes Hysteresis: Adjustable value in average: 10 - 30 %, depending on type Switch function: Changeover Electr. connection: AMP Superseal 1.5 integrated: Yes IP Rating: IP67 Contact rating: 48 VAC Contact material: Silver Sealing material: NBR EPDM FKM HNBR Housing material: Zinc-plated steel (CrVl-free) Connection: 7/16 - 20 UNF 9/16 - 18 UNF G 1/4 M 10 x 1 - tapered M 12 x 1,5 cylindrical NPT 1/4 NPT 1/8 Additional functions: none

Catalogs
