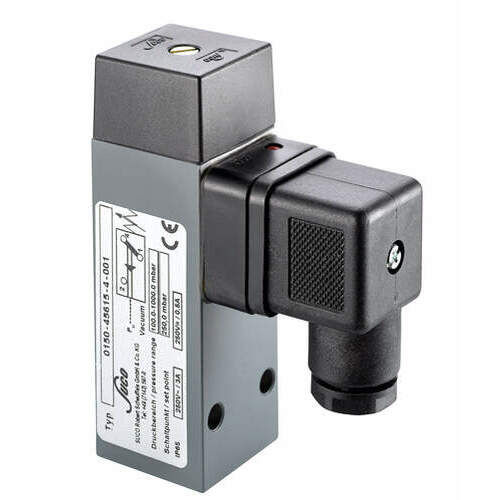

Medical pressure switch 0150adjustableIP65
Add to favorites
Compare this product
Characteristics
- Applications
- medical
- Other characteristics
- adjustable, IP65
- Pressure range
Min.: 100 mbar
(1.45 psi)Max.: 950 mbar
(13.78 psi)
Description
With high overpressure resistance
Switching point can be adjusted when fitted on site
Long service life even under harsh conditions
0150 series available as changeover contacts up to 250 V
0151 series available as NC or NO up to 42 V
Overpressure safety:
20 bar
Pressure type:
Vacuum
Adjustable switching point:
Yes
Hysteresis:
Hysteresis about 50 - 150mbar (not adjustable)
Switch function:
Changeover
Electr. connection:
socket device
integrated:
No
IP Rating:
IP65 with attached socket device
Contact rating:
250 VAC
Contact material:
Silver
Sealing material:
ECO
Housing material:
aluminium
Connection:
G 1/8 - internal thread
Additional functions:
none
