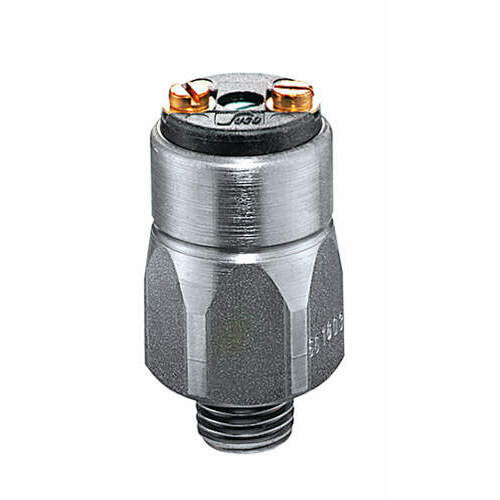

Diaphragm pressure switch 0163
medicaladjustablecompact

diaphragm pressure switch
diaphragm pressure switch
diaphragm pressure switch
diaphragm pressure switch
Add to favorites
Compare this product


Characteristics

Technology
diaphragm
Applications
medical
Other characteristics
adjustable, compact, IP65
Pressure range

Min.: 0.1 bar
(1.45 psi)

Max.: 50 bar
(725.19 psi)

Description

NC or NO, maximum voltage 42 V Most cost-effective solution for mechanical pressure monitoring Stable switching point even after long use and high load Switching point can be adjusted when fitted on site High pressure resistance, compact, small switches, available as normally closed (NC) or normally open (NO) Overpressure safety: 600 bar Pressure type: Overpressure Adjustable switching point: Yes Hysteresis: Average value of 5 - 30 %, depending on type, not adjustable Switch function: normally closed (NC) Normally open (NO) Electr. connection: screw terminal Spade terminal integrated: No IP Rating: IP65, terminals IP00 Contact rating: 42 VAC Contact material: Silver Sealing material: NBR EPDM FKM HNBR Housing material: Zinc-plated steel (CrVl-free) Connection: G 1/4 G 1/8 - cylindrical M 10 x 1 - tapered M 10 x 1 - cylindrical M 12 x 1,5 cylindrical NPT 1/8 Additional functions: none
