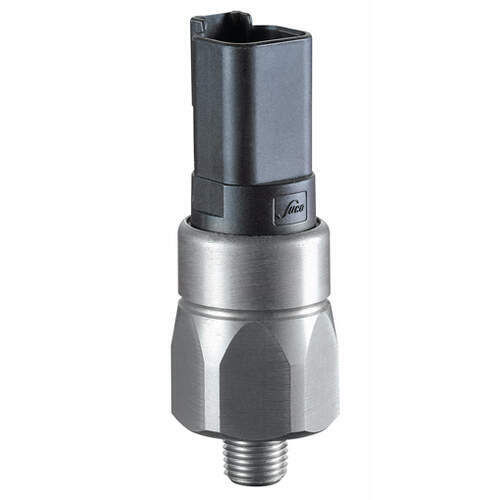

The all-rounder with the broad selection of options
Large selection of electrical plug-in types for quick attachment and reliable connection
High protection class (to IP67 or IP6K9K)
Compact and rugged design in industrial environments like construction and agricultural machinery or commercial vehicles
Switching point can be set on site with adjusting screw in the connector
High overpressure resistance, compact, small switches, available as normally open or normally closed
Overpressure safety:
600 bar
Pressure type:
Overpressure
Adjustable switching point:
Yes
Hysteresis:
Average value of 5 - 30 %, depending on type, not adjustable
Switch function:
normally closed (NC)
Normally open (NO)
Electr. connection:
AMP Superseal 1.5
integrated:
Yes
IP Rating:
IP67; IP6K9K
Contact rating:
42 VAC
Contact material:
Silver
Sealing material:
NBR
EPDM
FKM
HNBR
Housing material:
Zinc-plated steel (CrVl-free)
Connection:
G 1/4
G 1/8 - cylindrical
M 10 x 1 - tapered
M 10 x 1 - cylindrical
M 12 x 1,5 cylindrical
NPT 1/8
Additional functions:
none
