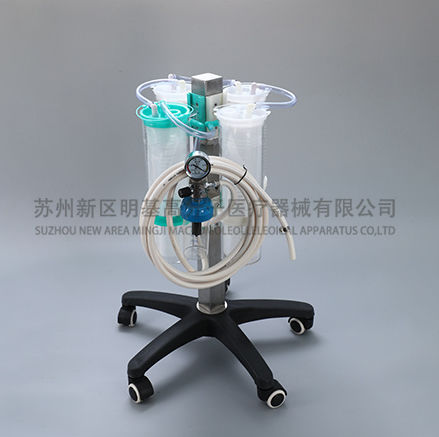

Pneumatic surgical suction pump

for surgical drainage and debridementvacuum-powered

Product name
Negative Pressure Suction Liner Equipment AL-SPL01-1200

Material
Medical non-toxic PVC

Usage
This product is used for drainage and storage of fluids during surgery.

Specification and Dimension
Single-bottle with rack (metal or plastic support), Double-bottle with rack, Four-bottle with rack, 2000 ml pressure suction bag

Product Advantages

• Effective prevention of cross infection
• Good pressure resistance and sealing performance
• Protects the central negative pressure system from contamination
• Flexible assembly: single-bottle, double-bottle and four-bottle configurations

Important technical parameters
The outer bag can withstand negative pressure of 90 kPa for 5 minutes without leakage.

Specification table
Cat. No. | Specification & Size | Material | Application
MC02-03A | Single-bottle with rack (metal rack) | Non-toxic, medical-grade PVC | For pressure suction and storage of sputum, urine or body fluids in medicine and surgery.
MC02-03B | Single-bottle with rack (plastic support) | Non-toxic, medical-grade PVC | For pressure suction and storage of sputum, urine or body fluids in medicine and surgery.
MC02-03C | Double-bottle with rack | Non-toxic, medical-grade PVC | For pressure suction and storage of sputum, urine or body fluids in medicine and surgery.
MC02-03D | Four-bottle with rack | Non-toxic, medical-grade PVC | For pressure suction and storage of sputum, urine or body fluids in medicine and surgery.
MC02-03E | Pressure suction bag 2000ml | Non-toxic, medical-grade PVC | For pressure suction and storage of sputum, urine or body fluids in medicine and surgery.

White cover: cannot prevent overflow. Green cover: prevents overflow.

Technical characteristics / specifications

• Model: AL-SPL01-1200
• Material: Medical non-toxic PVC
• Function: Drainage and storage of surgical fluids (sputum, urine, body fluids)
• Available configurations: Single-bottle with rack (metal or plastic), Double-bottle with rack, Four-bottle with rack, 2000 ml pressure suction bag
• Pressure performance: Outer bag withstands -90 kPa for 5 minutes without leakage
• Advantages: Cross-infection prevention, pressure resistance, sealing, protects central negative pressure system, modular assembly
