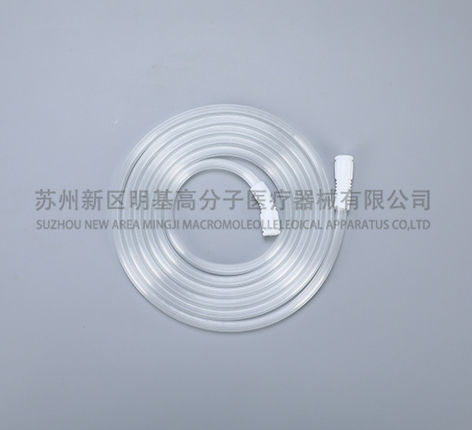

Surgical aspiration tubing

PVCYankauerstraight

Product overview
Disposable suction tube for surgical aspiration of residual fluids. Designed for single-use clinical applications.

Material
Medical non-toxic PVC (medical use soft vinylene chonide plastics).

Usage
This product is used to aspirate residual fluid during surgical procedures.

Scope of application
The suction tube is intended for surgical aspiration of residual fluids in general surgery, ENT and other operative settings.

Components

• Attractor head (Yankauer option available)
• Catheter tube
• Connector/joints

Product advantages

• High-elasticity stripe profile restores its shape after deformation.
• Integrated design ensures secure connection between tube and joint.

Important technical parameters

• Maximum negative pressure: 30 kPa.
• Mechanical strength: continuous force ≤15 N without separation between tube and joint.
• Flexibility: resistant to bending.

Product table
Cat. No. | Specification & Size | Material | Product application range
MC02-08A | Suction tube (highly elastic stripe, ordinary) 24Fr-36Fr | Medical use soft vinylene chonide plastics | For surgical aspiration of residual fluid and similar applications
MC02-08B | Yankauer aspirating head (single-set, double-set) 8Fr-36Fr | Medical use soft vinylene chonide plastics | For surgical aspiration of residual fluid and similar applications

Technical specifications

• Model: AL-SPL01-1200
• Material: Medical non-toxic PVC (medical use soft vinylene chonide plastics)
• Withstand negative pressure: 30 kPa
• Mechanical strength: no separation of tube and joint under continuous force ≤15 N
• Flexibility: resistant to bending
• Available specifications (examples): Suction tube 24Fr–36Fr; Yankauer aspirating head 8Fr–36Fr
