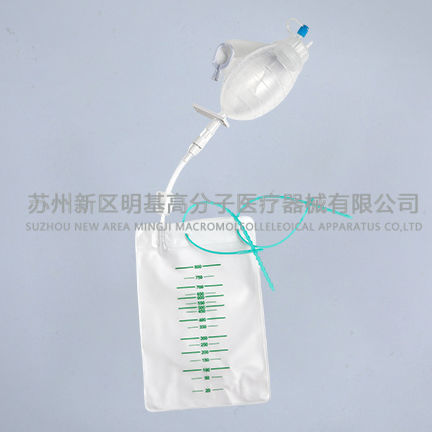

Wound drainage set

pediatricgraduatedsilicone

Product overview

• Material: silica gel, medical PVC
• Purpose: For clinical negative pressure drainage and storage of drainage fluid
• Model: Type I, Type II and Type III

Product advantages

• Multiple drainage tube designs reduce the risk of collapse or blockage, maintaining effective drainage
• The puncture needle guides the drainage tube through a subcutaneous tunnel to reduce wound contamination by drainage fluid
• Drainage tube wall includes radiopaque marking to facilitate position verification and effective drainage
• Collection container is calibrated for accurate observation and measurement of drainage volume

Important technical parameters

• Vacuum suction ball/tube withstands 15 kPa negative pressure for 60 seconds without obvious deformation
• Average flow performance: ≥ 10 mL/s
• Catheter and drainage tube show no leakage at -10 kPa negative pressure

Specification table
Cat.No. | Specification & Size | Material | Product application range
MC02-04A | Type I negative pressure ball | Medical use silica gel & PVC, Stainless steel | For clinical negative drainage and storage of drainage liquid
MC02-04B | Type II negative pressure ball + drainage ball | Medical use silica gel & PVC, Stainless steel | For clinical negative drainage and storage of drainage liquid
MC02-04C | Type III manual aspirator | Medical use silica gel & PVC, Stainless steel | For clinical negative drainage and storage of drainage liquid

Characteristics / technical specifications

• Materials: silica gel, medical PVC; components may include stainless steel
• Intended use: clinical negative pressure drainage and collection/storage of drainage liquid
• Available types/models: Type I (negative pressure ball), Type II (negative pressure ball + drainage ball), Type III (manual aspirator)
• Vacuum resistance: withstands 15 kPa negative pressure for 60 s without obvious deformation
• Flow performance: average velocity ≥ 10 mL/s
• Leakage resistance: no leakage at -10 kPa negative pressure
