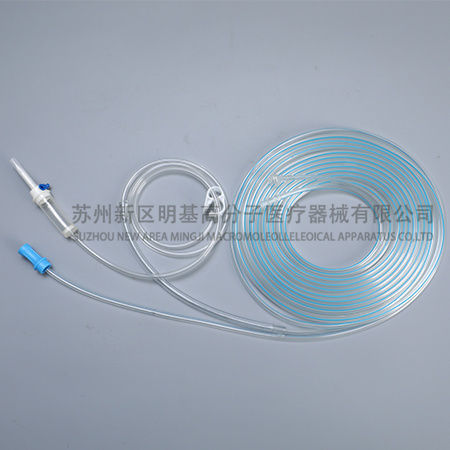

Irrigation tubing

PVC

Product overview
Material: silica gel and medical PVC.
Usage: for irrigating tissues and aspirating fluids during surgical or diagnostic procedures.
Models: Type I (irrigation [F6–F26]), Type II (irrigation [F6–F26] + suction [F10–F30]), Y-type irrigation tube.

Product advantages

• Allows simultaneous irrigation and suction, avoiding repeated instrument changes and streamlining procedure workflow.
• Dual tubes are relatively independent, reducing the risk of cross-contamination during use.
• Integrated regulators/valves enable effective adjustment of irrigation flow and suction control.

Important technical parameters

• Bonding points: no loosening, detachment or breakage under a tensile load of at least 15 N.
• Silica gel tube tensile strength: > 7.0 MPa; elongation: ≥ 300%.
• No leakage of catheter or drainage tube under a negative pressure of −10 kPa.

Product variants (catalog)
Cat.No. | Specification & Size | Material | Application
MC02-06A | irrigation tube [F6–F26] + suction tube [F10–F30] | silica gel & medical PVC | Clinical negative drainage and collection of drainage fluid
MC02-06B | irrigation tube [F6–F26] + suction tube [F10–F30] | silica gel & medical PVC | Clinical negative drainage and collection of drainage fluid
MC02-06C | Y-type irrigation tube | silica gel & medical PVC | Clinical negative drainage and collection of drainage fluid

Technical specifications

• Material: silica gel, medical PVC
• Intended use: irrigation of tissues and aspiration of fluids
• Available types: Type I (irrigation [F6–F26]); Type II (irrigation [F6–F26] + suction [F10–F30]); Y-type
• Bonding strength requirement: withstand ≥ 15 N without loosening or breakage
• Tensile strength (silica gel tube): > 7.0 MPa
• Elongation: ≥ 300%
• Leakage resistance: no leakage under −10 kPa negative pressure
• Catalog numbers: MC02-06A, MC02-06B, MC02-06C
