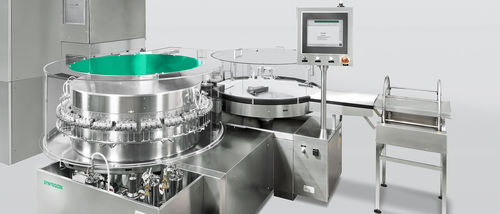

Cleaning machine for the pharmaceutical industry RRN 3xx5

servo-driven

Each cleaning station is completely free of hoses. This not only increases pharmaceutical safety, but also simplifies maintenance and cleaning efforts. By using a servo driven internal spraying needle motion, different container sizes can be processed without changing the internal spraying needles. The external cleaning stations are mounted above the transport system and can be easily adjusted for a specific height, angle, and lateral position. Excellent price performance ratio Space-saving and flexible layout Prepared for the future Defined and reproducible cycle times Simple and quick format change-over Minimized documentation expenditure via short pipe systems Simplified cleaning: high-quality surfaces (Ra < 0,6µm) Minimal risk of corrosion by using electropolished surfaces Ergonomic machine operation and maintenance Expandable to 7 interior cleaning stationss Lifting mechanism for the main access hood Vapor exhaust connection and condensation collection system Different Loading options Automatic draining and blowing out of the water carrying pipes Sample valves for microbiological analysis of the incoming WFI Siliconization station Container - Vials, Syringes, Cartridges Processing range container - Vials: max. 500 ml, 20H, 30R Syringes: max. 20 ml Cartridges: max. 10 ml Output/h - Vials: up to 36,000 Syringes: up to 24,000 Cartridges: up to 24,000 Syntegon washing machines process vials, cartridges and syringes.
