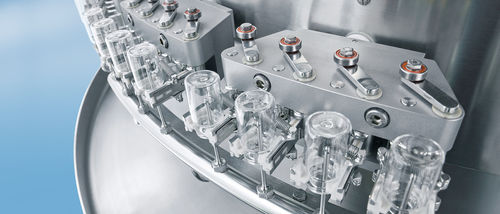

Cleaning machine for the pharmaceutical industry RRU 3xx5

with ultrasonic cleanerservo-driven

The RRU 3xx5 series (with ultrasonic bath) is the perfect solution for the high output range. For optimum cleaning results the incoming containers will be pre-treated in an ultrasonic bath. Containers are then gently singularized by a scroll conveyor and passed on to an elevator, which gently lifts them from the bath. The internal cleaning stations are completely free of hoses. This not only increases pharmaceutical safety, but also simplifies maintenance and cleaning efforts. By using a servo driven internal spraying needle motion, different container sizes can be processed without changing the internal spraying needles. The external cleaning stations are mounted above the transport system and can be easily adjusted for a specific height, angle, and lateral position. Excellent price performance ratio Space-saving and flexible layout Flexible processing / capacity range Configurable format recipes for container size and washing times Simple format conversion Reduced documentation requirements with short internal piping systems Simplified cleaning: high-quality surfaces (Ra < 0,6μm) and good accessibility Minimal risk of corrosion by using electropolished surfaces and high-quality inner tubing surfaces Ergonomic machine operation and format recipe management system Expandable to 7 interior cleaning stations Pneumatically lifting mechanism for the main access hood Vapor exhaust connection and condensation collection system Different loading options Automatic draining and blowing out of the water carrying pipes Sample valves for microbiological analysis of the incoming WFI Siliconization station
