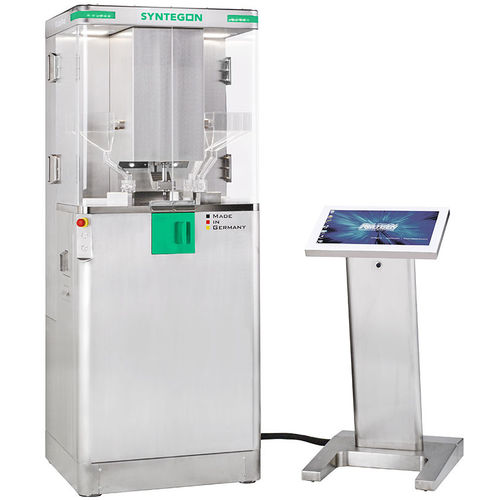

Tableting machine FlexiTab XL

double-layersingle layertriple-layer

The FlexiTab provides tablet development formulators with a very versatile single punch tablet press. The FlexiTab is capable of manufacturing single, two layer and three layer tablets. Adjustable force and dwell time profiles can be created to aid the assessment of powder characteristics at their early stage of development. A key advantage is the ability to use standard TSM/Euro B/D punches and dies, although certain other punch types can also be accommodated. The measurement of punch displacement is a valuable option to measure the compressibility of the formulation. An optional data acquisition DAQ4 package provides a range of graphical displays, recording of data and the capability to export this data for further study. With the FlexiTab, punches and dies can be easily exchanged without the need to remove feeders or hoppers – a great benefit when using the same powder but with different size and/or shape of punches and dies. Movable execution External magnesium stearate lubrication of punches and dies Air blast die cleaning and vacuum dust extraction Laser type die fill monitoring Reporting features (USP 1062 and cGMP) DAQ 4 data acquisition software Press parameters displayed in real time CFR21 part 11 and USP 1062 compliant simple adjustments for tablet weight, compression force, dwell time and thickness (tablet weight/thickness indirectly via fill depth) No relevant residues in product hoppers A single punch machine that enables the initial screening of powders and granules and can establish the product characteristics for up to three different layers of materials.
