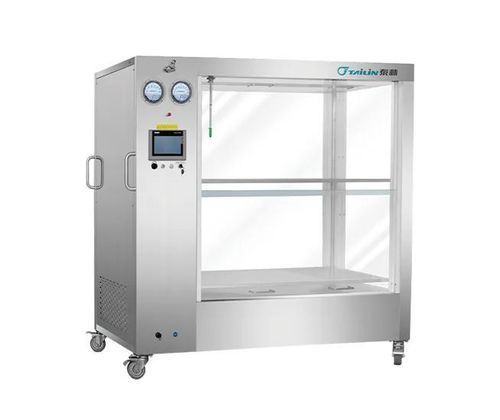

Cleanroom laminar air flow Laminar Flow Trolley

trolley-mountedmobilehorizontal

Product introduction
Provides ISO Class 5 (Class A) clean air via unidirectional laminar flow to prevent contamination during aseptic transfer of sterile materials and equipment. Main components include a stainless steel enclosure (SUS304), fan unit, gel-sealed HEPA filter, fan test port and UPS power supply.

Features

• Selectable vertical or horizontal unidirectional laminar flow.
• High-efficiency fan unit from a reputable manufacturer for low energy consumption and reliable operation.
• Welded SUS304 stainless steel construction with smooth surfaces for easy cleaning and maintenance.
• Gel-sealed HEPA filter (H13/H14 options) to minimize air leakage and ensure particle containment.
• Delivers ISO Class 5 (Class A) clean air with low operational maintenance.
• Integrated UPS backup to maintain laminar flow during short power interruptions.

Applications
Designed for aseptic transfer of materials and equipment between sterile processes and controlled areas.

• Pharmaceutical industry
• Biotechnology industry
• Food and beverage industry
• Hospital pharmacies and aseptic compounding units

Technical specifications

• Airflow: Unidirectional vertical / horizontal airflow
• Cleanliness level: Class A (ISO Class 5)
• Air velocity: 0.36–0.54 m/s
• Glove material: PVC or CSM
• Noise: ≤65 dB(A)
• Power: 220 V, 50 Hz
• Material of construction (MOC): SUS304 (stainless steel 304)
• Battery life (UPS): ≥0.5 hour
