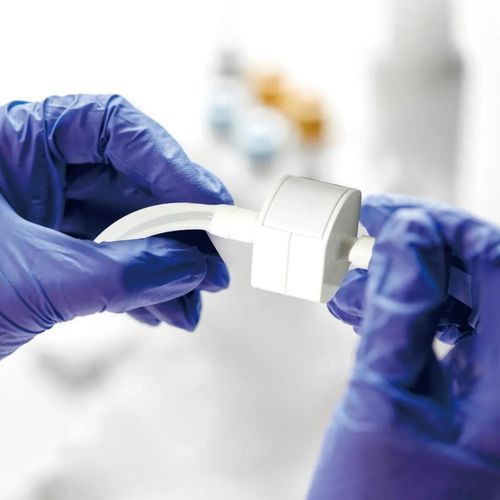

Biopharmaceutical connector Sterisafe

autoclavabledisposable

Introduction
Sterisafe sterile connectors are disposable, single-use devices that create a permanent sterile fluid connection between two fluid paths. Designed for biopharmaceutical and bioprocessing applications, the connector supports aseptic joins even when handled in non-sterile environments and uses an intuitive 3-step sequence for reliable operation.
Operation Steps

• Step 1: Remove the protective housing, pull and detach the connection latch from the connector body.
• Step 2: Align the two coupling bodies and press them together until a click is heard; pull the membranes from the connector.
• Step 3: Insert both latches into the snapped connector body and press until a click confirms engagement.

Features
Disposable single-use design enabling permanent sterile fluid connections; intuitive 3-step operation for fast aseptic connections; suitable for use in non-sterile environments without compromising aseptic performance.
Applications

• Media preparation and transfer
• Buffer preparation and transfer
• Bioreactor inoculation
• Sampling during fermentation/cell culture
• Harvesting from bioreactors
• Aseptic transfer of fluids between unit operations
• Batch processing of sterile materials in non-controlled environments
• Sterile electrode/probe connections to bioreactors, dosing systems and 3D biocontainers
• Sterile filtration tubing components
• Sterile connections to stainless steel and single-use systems
• Aseptic connections and transfers of semi-finished product to fillers
• Removal of sterile waste from process materials

Technical specifications

• Pressure: Up to 0.6 MPa / 48 hr
• Temperature range: 1 °C - 45 °C
• Sterilization methods and limits: Gamma irradiation — Max. 50 kGy per dose (25 kGy recommended); Autoclave — Max. 130 °C for 75 min (121 °C for 20 min recommended)
• Device type: Disposable sterile connector for permanent sterile fluid connections
