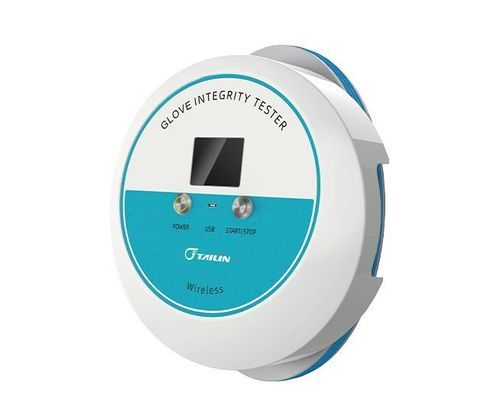

Glove integrity tester GIT-WLAN03

for laboratory isolatorsfor the pharmaceutical industryRABS

Product Introduction
The GIT-WLAN03 is a portable glove integrity tester designed for leak testing gloves mounted on isolators or RABS. It uses wireless communication, RFID identification and intelligent software to enable paperless records, in-situ testing and multi-device group control, automatically generating GMP-compliant electronic test reports for full traceability.
Features

• Temperature Monitoring
• High-precision temperature sensor with ±0.1°C accuracy to correct temperature-related measurement variance.
• Modular Design
• Replaceable charging module and internal battery pack for rapid serviceability.
• Uses standard 18650 cells in the battery pack.
• Test port modules customizable in shape and size to match glove flange geometry.
• Glove ID (RFID)
• Integrated RFID reads glove identifier and automatically associates it with test results.
• Detection Accuracy
• Leak-rate detection capability down to 100μm under defined test parameters and conditions.
• Operational Convenience
• Optional charging trolley for continuous operation; typical runtime ≥8 h on a full charge.
• Lightweight design, net weight ≤3 kg for single-operator handling.

Compliance
Relevant standards and guidance referenced: ISO 14644-7 Annex E.5, EU GMP Annex 1 (2022) section 4.21 (glove testing for isolators and RABS) and FDA Guidance for Industry: Sterile Drug Products Produced by Aseptic Processing (2004) Appendix 1 regarding routine physical integrity tests.
Applications

• Pharmaceutical and biotechnology aseptic production
• Food industry safety control
• High-risk industrial protection and cleanroom operations

Technical Specifications

• Temperature monitoring accuracy: ±0.1°C
• Test time: ≤6 min
• Smallest detectable hole: 100μm
• Continuous working time: ≥4 hours (typical ≥8 hours with charging trolley)
• Net weight: ≤3 kg
• Battery: 12 V lithium (18650 cells)
• Dimensions: Ø280 × 125 mm
• Glove flange interface: customizable
