Glove integrity tester GIT-MINI02

for laboratory isolatorsfor the pharmaceutical industryRABS

Product introduction

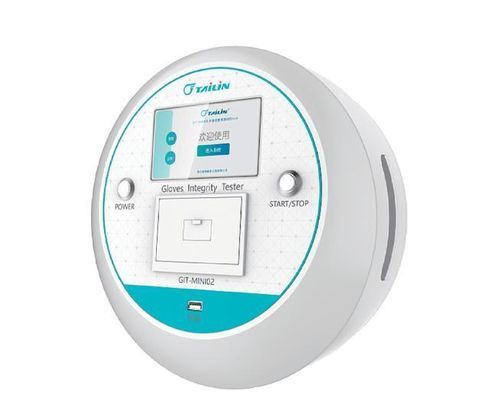

The GIT-MINI02 is a portable glove integrity tester for isolator and RABS sleeve/glove systems. It performs automatic positive-pressure, pressure-decay tests in situ without removing or disassembling the sleeve or glove, and displays real-time results on an integrated control and display unit. The unit is designed for single-operator use and connects to standard isolator test ports.

Features

• Integrated control and display with intuitive human–machine interface for easy observation and operation.
• Three configurable user authority levels.
• In-situ testing without removing sleeve/glove assembly.
• Portable, battery-powered design with built-in air pump—no external power or air source required.
• Automatic display of test results and data storage for traceability.

Compliance
Designed to support regulatory and industry guidance including ISO 14644-7 Annex E.5 (pressure-decay glove test procedures), EU GMP Annex 1 (2022) section 4.21 on glove system leak testing, and FDA guidance on physical integrity testing of aseptically processed sterile drug products.

Applications

• Pharmaceutical and biotechnology aseptic production
• Food industry hygiene and safety control
• High-risk industrial protection and cleanroom maintenance

Technical specifications

• Inflation pressure: 500 Pa–2500 Pa
• Test time: 3–8 min
• Smallest detectable hole: 100 μm
• Continuous working time: ≥ 4 hours
• Net weight: ≈ 2.5 kg
• Battery: 12 V lithium battery
• Pressure display resolution: 0.1 Pa
• Charging time: 4 h
• Input pressure: > 0.2 MPa
• Dimensions: 260 mm × 280 mm × 125 mm
• Storage data: 10,000 groups
• Detection port diameter: Φ255 mm or customized
