Dental surgery micromotor M3dentalsurgicalclinical
Add to favorites
Compare this product
Characteristics
- Applications
- for dental surgery, dental, surgical, clinical
- Operation
- brushless electric, DC, electric, air
- Ergonomics
- built-in
- Lighting technology
- with LED light
- Options and accessories
- accessories, with touchscreen
- Other characteristics
- autoclavable
- Speed
Max.: 50,000 rpm
(314,159.3 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Sound level
Max.: 60 dB
Min.: 20 dB
- Length
7.4 cm
(2.9 in)- Head diameter
22 mm
(0.9 in)
Description
Overview
Key products (excerpt)
Technical specifications (examples)
Intended use and compliance
- Category page for dental clinical motors by TEALTH, covering built-in brushless electric motors, stand‑alone brushless electric motors, low‑speed air motors for handpieces and surgical drive systems with self‑pumping coolant.
Key products (excerpt)
- TEALTH built‑in brushless electric motor — Built‑in brushless motor with touch screen. Order code: DIL-22C. Features: rotation speed 2000–40000 r/min; torque 3 N·cm; voltage DC24V–36V; motor size 22×L74 mm; weight 77 g; noise <60 dB; LED (white); control system size 148×80×17 mm.
- TEALTH brushless electric motor — Packing list: Motor 1 PCS; Control PC board 1 PCS; Power adapter jack 1 PCS. Features: torque head; quiet (noise <60 dB); motor size Φ22×L71 mm; voltage DC24V.
- Dental low‑speed handpiece with internal irrigation (2/4 holes) — Low‑speed air motor for handpieces, intended for various dental procedures; durable and reliable in clinical use.

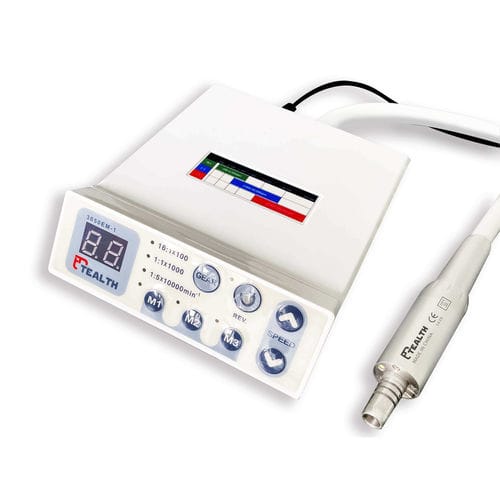

- TEALTH surgical drive system with self‑pumping water electric motor — System composed of motor, control unit, foot control and coolant solution hanger; intended for dental oral surgery by qualified personnel. Order code: DIL-21C. CE: 3050EM-1. Features: brushless motor; torque 17 N·cm; speed 0–50000 r/min; coolant flow 0–100 ml/min (self‑pumping where applicable).
- External irrigation low‑speed air motor dental handpiece — TEALTH Mini external irrigation low‑speed air motor; lightweight; autoclavable up to 135°C (model dependent).
Technical specifications (examples)
- Brand: TEALTH
- Product types: built‑in brushless electric motor, brushless electric motor, surgical self‑pumping electric motor, low‑speed air motors (internal/external irrigation, fiber‑optic variants)
- Rotation speeds: 2000–40000 r/min; 0–50000 r/min (surgical)
- Torques: 3 N·cm; 17 N·cm (surgical)
- Voltages: DC24V; DC24V–36V
- Motor dimensions: Φ22×L71 mm; 22×L74 mm
- Weight example: 77 g
- Noise level: <60 dB (reported for several models)
- Illumination: white LED for fiber‑optic models
- Cooling (surgical): 0–100 ml/min (self‑pumping)
- Typical packaging: motor; control PC board; power adapter/jack
Intended use and compliance
- Products are intended for dental clinical and oral surgical procedures performed by qualified personnel. Specific models may carry CE marking or other regulatory designations as indicated in individual product details.
