TEALTH dental Surgical drive system self pumping water electric motor
Order code: DIL-21C
CE: 3050EM-1
Brushless motor
Torque: 17N.cm
Rotation speed 0-50,000r/min
Cooling water: 0-100ml/min
Self-pumping water
Structure

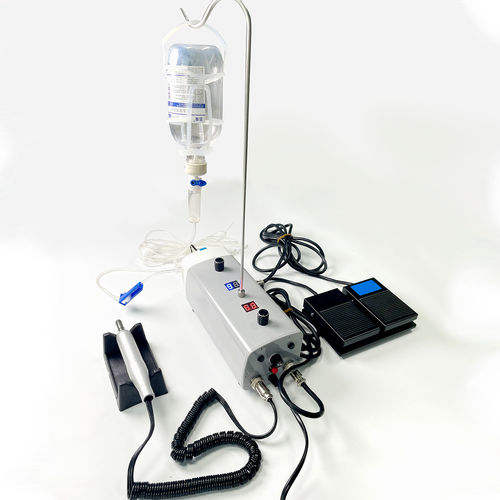

Electric motor composes of motor, control unit, foot control and Coolant solution hanger post.
Application
It is intended for use in dental oral surgery and surgical procedures by qualified personnel.
Technical Specification
1 Adapter
Input: 100-240V~, 50/60Hz,1.5A
Power input: 50VA
2 Motor
Motor type - Direct current brushless motor
Voltage - DC36V
Operation mode - REV
Speed - 2000-50,000 rpm
Torque - 17N·cm
Sterilization - 121℃20 minute,or 135℃12 minute
Motor size - Ф23×L145mm
Noise - ≤60dB
3 Control unit
Model - EM1-A
Voltage - 110-220V~
Motor size - L225×W90×H100mm
Fuse protector - T3.15AL250V
4 Water supply
Cooling water supply - 0-100ml/min
