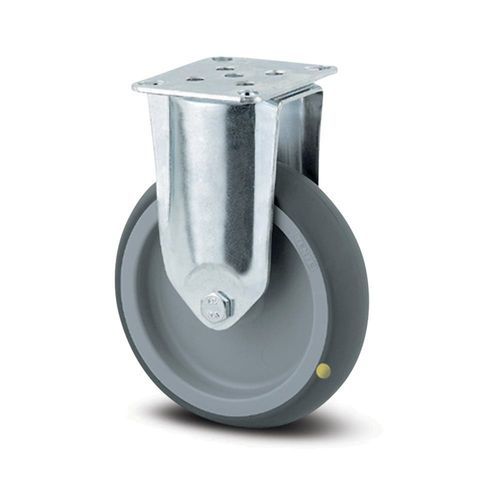

Medical trolley wheel Agila

for hospital bedanti-staticrubber

Description The Agila fixed castor with rectangular plate fitting is designed for medical and care environments requiring electrostatic discharge protection and non-marking movement. The housing is made from pressed medium steel with blue passivation. The wheel has a polypropylene conductive body and a thermoplastic rubber conductive tread, running on a plain bearing. Wheel diameter: 3.94 in (≈100 mm); Overall height: 5.31 in (≈135 mm). Dynamic load capacity: 176.37 lb (≈80 kg) at speeds up to 1.86 mph / 3 km/h; Static load capacity: 352.74 lb (≈160 kg).

Applications

• Care beds
• Catering carts and meal delivery systems
• Hospitals
• Nursing and retirement homes
• Professional cleaning carts
• Store fixtures and display equipment

Main features

• RoHS/REACH compliant materials
• Laboratory-tested for compliance with European standards (EN12530)
• Pressed medium steel housing, zinc plated (blue passivated)
• Rectangular plate fitting (77 x 67 mm) with slotted holes for flexible mounting
• Electric-conductive wheel and tread for ESD protection
• Non-marking tread with reduced abrasion and low maintenance
• Threaded axle for easy wheel replacement

Fitting / Mounting (summary)
Fitting: Rectangular plate, 77 x 67 mm
Plate hole diameter: 0.33 in (≈8.4 mm)
Plate hole length (max / min): 2.03 in / 1.83 in (≈51.6 mm / 46.5 mm)
Plate hole width (max / min): 2.42 in / 2.2 in (≈61.5 mm / 55.9 mm)
Plate length: 3.03 in (≈77 mm)
Plate width: 2.64 in (≈67 mm)

Notes

• Wheel bearing: plain bearing
• Swivel bearing (for swivel versions shown elsewhere): two ball races
• Standard: EN12530 - Devices Castors

Technical specifications

• Article Number: 2478YGO100P50
• EAN: 4031582342109
• S4 Material Number: 990034885
• Product name / series: Agila
• Type: Fixed castor
• Wheel diameter: 3.94 in (≈100 mm)
• Overall height: 5.31 in (≈135 mm)
• Overall width: 2.36 in (≈60 mm)
• Wheel body material: Polypropylene, electric-conductive
• Tread material: Thermoplastic rubber, electric-conductive
• Tread hardness: 87 Shore A
• Tread width / Body width: 1.26 in (≈32 mm)
• Bearing (wheel): Plain bearing
• Load capacity at 3 km/h (dynamic): 176.37 lb (≈80 kg)
• Load capacity (static): 352.74 lb (≈160 kg)
• Overall weight: 1.06 lb (≈0.48 kg)
• Temperature range (min / max): -4 °F / 140 °F (≈ -20 °C / 60 °C)
• Housing material: Steel sheet, medium
• Housing color: Blue passivated
• Fork shape: Broad
• Dome diameter: 2.36 in (≈60 mm)
• Wheel color: Silver gray (similar to RAL 7001)
• Threadguards: Without threadguard
• Electric conductive: yes (conductive version available / certified conductivity)
