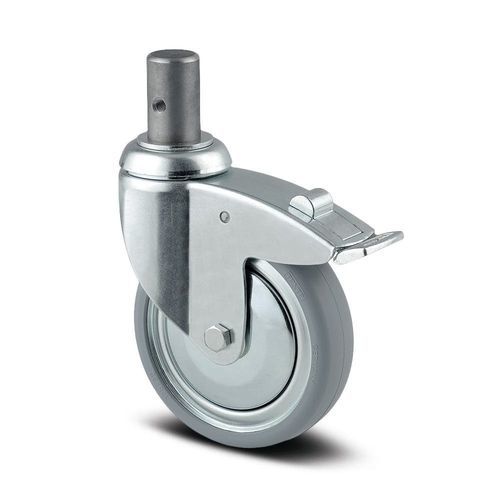

Medical trolley wheel Agila

for hospital bedwith brakerubber

Short description
The Agila swivel castor with total lock (article 2477DIK125R05-28) features a solid stem round fitting (28 mm), pressed steel housing with two ball races for smooth swivel action, and a 4.92 in (125 mm) wheel with sheet-steel body and solid rubber non-marking tread. Cone ball bearing and threadguard ensure reliable rolling performance and low maintenance. Rated 220.46 lb dynamic (at up to 1.86 mph) and 440.92 lb static, this castor is suitable for care beds, catering and meal delivery trolleys, hospitals, nursing homes, professional cleaning trolleys and shop fixtures.

Product advantages

• Non-hazardous materials — RoHS and REACH compliant
• Tested quality — laboratory verified to European standards (EN12530)
• Variable fitting options — compatible with multiple mounting arrangements

Features (from configurator)

• Wheel: Solid rubber, non-marking; cone ball bearing; with threadguard
• Diameter: 4.92 in (125 mm)
• Overall height: 6.42 in
• Load capacity (dynamic at 3 km/h ≈ 1.86 mph): 220.46 lb

Special features

• RoHS/REACH compliance — free of PAHs and chromium (VI)
• Tested quality — internal laboratory testing to ensure standard compliance
• Pressed steel housing — zinc plated for corrosion resistance
• Manual wheel lock — prevents unintended movement
• Total lock — simultaneous locking of wheel and swivel housing
• Interchangeable parts — threaded axles for easy wheel replacement
• Low maintenance — threadguards reduce cleaning and blockage issues
• Non-marking movement — reduced abrasion on floors
• Easy steering — swivel head with double ball races

Applications

• Care beds
• Catering carts and meal delivery systems
• Hospitals, nursing and retirement homes
• Professional cleaning carts
• Store fixtures and display equipment

Technical data (summary table)
Article Number: 2477DIK125R05-28
EAN: 4031582301915
Type: Swivel castor with total lock
Overall width: 2.36 in
Wheel diameter: 4.92 in (125 mm)
Overall height: 6.42 in
Load capacity at 3 km/h (dynamic): 220.46 lb
Load capacity (static): 440.92 lb
Operating temperature range: -4 °F to 176 °F
Overall weight: 3.28 lb
Product name / Series: Agila
Standard: EN12530 - Devices Castors
Fitting type: Solid stem, round (28 mm)
Housing material / finish: Pressed steel, blue passivated
Swivel bearing: Two ball races
Wheel body: Sheet steel; Tread: Solid rubber, non-marking; Bearing: Cone ball bearing; Hardness: 80 Shore A
Threadguards: With threadguard

Technical specifications

• Article number: 2477DIK125R05-28
• EAN / GTIN-13: 4031582301915
• Series / Brand: Agila
• Type: Swivel castor with total lock
• Wheel diameter: 4.92 in (125 mm)
• Overall height: 6.42 in
• Overall width: 2.36 in
• Tread width / Body width: 1.26 in
• Tread material: Solid rubber, non-marking
• Body material: Sheet steel
• Wheel bearing: Cone ball bearing
• Swivel bearing: Two ball races
• Hardness of tread: 80 Shore A
• Load capacity (dynamic): 220.46 lb
• Load capacity (static): 440.92 lb
• Temperature range: -4 °F to 176 °F
• Weight: 3.28 lb
• Fitting: Solid stem, round, 28 mm (bolt details: Ø 1.1 in; length 1.77 in; thread position 0.75 in)
• Special functions: Total lock and manual wheel lock
• Standard: EN12530
