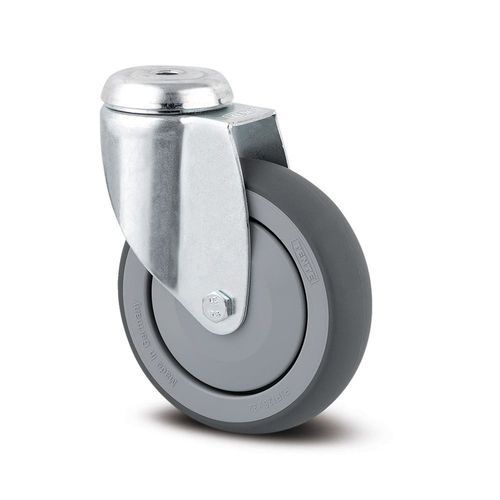

Medical trolley wheel Agila

for hospital bedrubberanti-corrosion

Overview
The Agila swivel castor with bolt hole fitting enables secure mounting with standard screws of any length. The pressed medium steel sheet housing includes two ball races for the swivel bearing to ensure smooth steering. The wheel features a polypropylene body, thermoplastic rubber tread (87 Shore A) and a precision ball bearing for reliable rolling performance. Suitable for use on care beds, catering trolleys, meal delivery systems, hospitals, nursing homes, professional cleaning trolleys and retail fixtures.

Key features

• Wheel diameter: 2.95 in
• Overall height: 3.94 in
• Dynamic load capacity: 165.35 lb (at speeds up to 1.86 mph)
• Static load capacity: 330.69 lb
• Wheel body: Polypropylene
• Tread: Thermoplastic rubber (87 Shore A)
• Bearing: Precision ball bearing
• Threadguard included
• Bolt hole fitting: 11 mm

Product advantages

• Non-hazardous materials — complies with RoHS and REACH; no PAHs or chromium VI
• Tested quality — company laboratory testing for compliance with European standards
• Variable fitting options for different applications

Special features

• Non-hazardous materials — complies with RoHS and REACH; does not contain polycyclic aromatic hydrocarbons or chromium (VI).
• Tested quality — tested in our laboratory for compliance with European standards.
• Solid housing — pressed medium steel sheet, blue passivated/zinc plated.
• Variable fitting options — different fitting dimensions available.
• Resource-conserving part replacement — threaded axles for easy wheel change.
• Low-maintenance wheels — thread guards for unobstructed operation.
• Non-marking movement — reduced abrasion and minimal cleaning requirements.
• Easy steering — swivel head with double ball races for smooth steering.

Technical specifications

• Product name: Agila
• Article number: 2470PJP075P30-11
• EAN: 4031582010459
• S4 Material Number: 990004292
• Type: Swivel castor
• Overall width (dome): 1.69 in
• Overall height: 3.94 in
• Dome diameter: 1.69 in
• Load capacity at 3 km/h (dynamic): 165.35 lb
• Load capacity (static): 330.69 lb
• Offset: 0.94 in
• Swivel radius: 2.42 in
• Swivel interference: 4.84 in
• Bolt hole fitting: bolt hole diameter 0.43 in (11 mm)
• Housing color: Blue passivated
• Fork shape: Broad
• Housing material: Steel sheet, medium
• Swivel bearing: Two ball races
• Wheel diameter: 2.95 in
• Tread width / Body width: 0.98 in
• Body material: Polypropylene
• Tread material: Thermoplastic rubber (87 Shore A)
• Bearing: Precision ball bearing
• Threadguards: With threadguard
• Wheel color: Silver gray (RAL7001)
• Operating temperature range: -4 °F to 140 °F
• Overall weight: 0.56 lb
