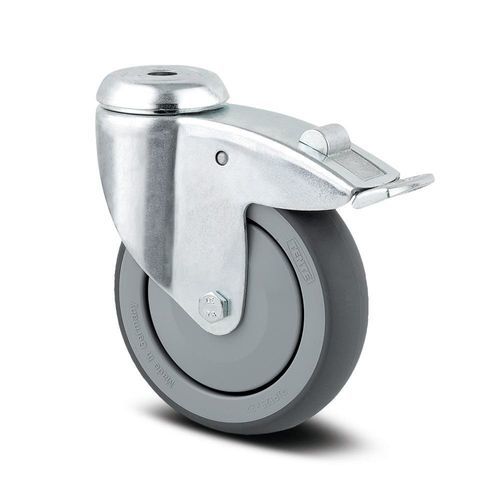

Hospital bed wheel Agila

with brakerubberpolypropylene

Short description
The Agila swivel castor with total lock features a bolt hole fitting that allows mounting with standard screws of any length. The housing is made of medium steel sheet with a blue passivated finish and incorporates two ball races for the swivel bearing. The wheel has a polypropylene body with a thermoplastic rubber tread and a precision ball bearing, including a threadguard for unobstructed operation.

Key features

• Type: Swivel castor with total lock (simultaneously locks wheel and swivel housing)
• Wheel: Polypropylene body, thermoplastic rubber tread, precision ball bearing, threadguard
• Housing: Medium steel sheet, blue passivated, broad fork shape, two ball races for swivel bearing
• Mounting: Bolt hole fitting (bolt hole diameter 0.43 in) — can be mounted with standard screws of any length
• Non-hazardous materials (complies with RoHS and REACH)
• Tested quality and compliance with standards
• Variable fitting options and resource-conserving part replacement (threaded axles for easy wheel change)

Applications

• Care beds and hospital furniture
• Catering carts and meal delivery systems
• Professional cleaning carts
• Store fixtures and display equipment
• Nursing and retirement homes

Special features

• Non-hazardous materials: complies with RoHS and REACH; does not contain PAHs or chromium (VI)
• Tested quality: tested in company laboratory for compliance with European standards
• Solid housing: pressed steel, zinc plated
• Prevents unintended movement: wheel lock for manual operation
• Secured stand: total lock locks wheel and swivel housing simultaneously
• Variable fitting options: different fitting dimensions for wide range of applications
• Resource-conserving part replacement: threaded axles allow effortless wheel change
• Low-maintenance wheels: thread guards reduce cleaning effort
• Non-marking movement: reduced abrasion and minimal cleaning requirements
• Easy steering: swivel head with double ball bearings

Technical specifications

• Product name / Series: Agila
• Order number (S4 Material Number): 990004327
• Product number (Article Number): 2477PJP075P30-11
• EAN: 4031582050424
• Type: Swivel castor with total lock
• Wheel diameter: 2.95 in
• Overall height: 3.94 in
• Overall width / Dome diameter: 1.69 in
• Tread width / Body width: 0.98 in
• Tread material: Thermoplastic rubber
• Body material (wheel): Polypropylene
• Hardness of tread: 87 Shore A
• Bearing (wheel): Precision ball bearing
• Threadguards: With threadguard
• Wheel color: Silver gray (RAL7001)
• Housing color / finish: Blue passivated
• Housing material: Steel sheet, medium
• Fork shape: Broad
• Swivel bearing: Two ball races
• Offset: 0.94 in
• Swivel radius: 3.15 in
• Swivel interference: 6.3 in
• Bolt hole diameter: 0.43 in
• Load capacity (dynamic at 3 km/h / ~1.86 mph): 165.35 lb
• Load capacity (static): 330.69 lb
• Overall weight (per caster): 0.68 lb
• Temperature range: -4 °F (minimum) to 140 °F (maximum)
• Standard: EN12530 - Devices Castors
• Electric conductive: No
• Stainless: No
