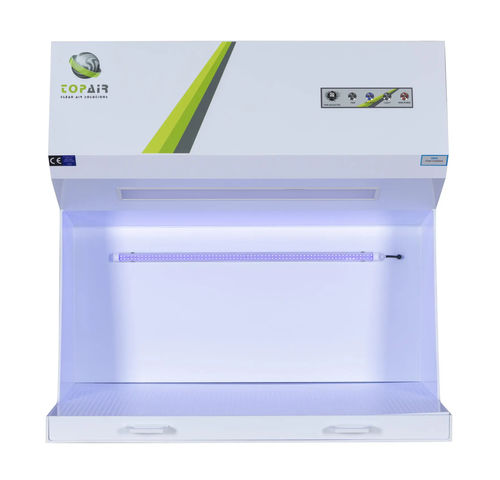

Containment fume hood DF-60chemical filtrationfor powder handlingfloor-standing
Add to favorites
Compare this product
Characteristics
- Function
- containment, chemical filtration
- Applications
- for powder handling
- Configuration
- floor-standing
- Filter type
- HEPA, activated carbon
- Air flow type
- downflow
- Exhaust mode
- ductless
- Structure material
- stainless steel, polypropylene
- Other characteristics
- custom
- Power
24 W
- Length
60 cm, 90 cm, 120 cm
(23.62 in, 35.43 in, 47.24 in)- Depth
70 cm
(27.56 in)- Height
120 cm
(47.24 in)
Description
Product overview
The TopAir Downflow Powder Workstation is a standalone, ductless enclosure designed to protect operators from hazardous powders and fumes while allowing close visual and manual access to samples. Air is drawn downward through the stainless steel work surface into a multistage filtration system; cleaned air is then recirculated to the room.
Features
Models (specifications table)
Spec / Model — DF-60 — DF-90 — DF-120
External Dimensions WxDxH — 60 x 70 x 120 cm — 90 x 70 x 120 cm — 120 x 70 x 120 cm
External Dimensions (inches) — 23.6 x 27.5 x 47.2" — 35 x 27.5 x 47.2" — 47.2 x 27.5 x 47.2"
Internal Height — 70 cm / 27.5" — 70 cm / 27.5" — 70 cm / 27.5"
Power Supply — 115 / 230 V 50/60 Hz, single phase — 115 / 230 V 50/60 Hz, single phase — 115 / 230 V 50/60 Hz, single phase
Technical specifications
The TopAir Downflow Powder Workstation is a standalone, ductless enclosure designed to protect operators from hazardous powders and fumes while allowing close visual and manual access to samples. Air is drawn downward through the stainless steel work surface into a multistage filtration system; cleaned air is then recirculated to the room.
Features
- Welded white polypropylene structure for chemical resistance
- 304 stainless steel worktop with integrated drawer for easy cleaning
- Filtration chain: H14 HEPA stage plus activated carbon stage for fumes and odors
- Front access for quick filter replacement and maintenance
- Analog control panel with fan speed control and high-pressure (filter block) alarm
- 800 LUX, 24 W energy-efficient LED lighting
- Selectable supply voltage 110/220 V (115/230 V), 50/60 Hz, single phase
Models (specifications table)
Spec / Model — DF-60 — DF-90 — DF-120
External Dimensions WxDxH — 60 x 70 x 120 cm — 90 x 70 x 120 cm — 120 x 70 x 120 cm
External Dimensions (inches) — 23.6 x 27.5 x 47.2" — 35 x 27.5 x 47.2" — 47.2 x 27.5 x 47.2"
Internal Height — 70 cm / 27.5" — 70 cm / 27.5" — 70 cm / 27.5"
Power Supply — 115 / 230 V 50/60 Hz, single phase — 115 / 230 V 50/60 Hz, single phase — 115 / 230 V 50/60 Hz, single phase
Technical specifications
- Construction: welded white polypropylene body for high chemical resistance
- Work surface: 304 stainless steel with integrated drawer to simplify cleaning and contamination control
- Filtration: H14 HEPA filter for particulates plus activated carbon filter for gases and odors
- Airflow concept: downflow design directs particles and fumes through the work surface into filters to reduce operator exposure
- Access and ergonomics: open front design for close inspection and handling; filters accessible from the front for rapid replacement
- Controls and safety: analog control with fan speed adjustment and high-pressure alarm indicating filter blockage
- Lighting: 800 LUX LED, 24 W for consistent task lighting
- Electrical: selectable 110/220 V (115/230 V), 50/60 Hz, single phase
- Available models: DF-60, DF-90, DF-120; custom sizes available on request
