Chemical fume hood ECO

for teachingcontainmentlaboratory

Product overview

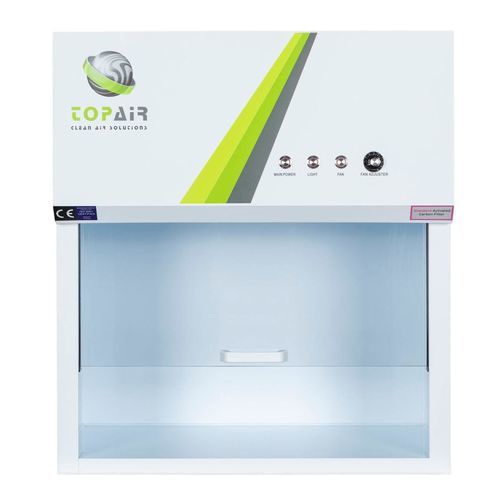

TopAir Systems Eco ductless fume hood (Eco series) is a lightweight benchtop cabinet designed to provide local containment for acids and aggressive chemicals without external ducting. It is the most cost-effective model in the Eco line, intended for basic lab processes, educational use and small laboratories. Key components include an analog on/off control, speed-adjustable EC fan and LED illumination.

Structure

• 8 mm welded polypropylene structure with high chemical resistance
• Built-in sealed polypropylene worktop
• Tempered glass partial sliding front sash with a maximum working height of 200 mm (8")
• Analog on/off control system

Features
Simple manual control with fan speed adjustment for controlled recirculation and filtration.

• 600 lux LED illumination
• Adjustable face velocity: 0.5 ± 0.1 m/s (100 ± 20 FPM)
• Filter options: carbon filters for solvents and HEPA filters for particulate capture
• EC/ECM speed-adjustable fan
• CE certified; complies with AFNOR NF X 15-211:2009

Models (table)
Spec / Model | ECO-CF-075 | ECO-CF-090 | ECO-CF-120
Outer Dimensions (W x D x H) | 750 x 520 x 840 mm (29.5 x 20.4 x 33") | 900 x 520 x 840 mm (35.4 x 20.4 x 33") | 1200 x 520 x 840 mm (47.2 x 20.4 x 33")
Workspace (W x D x H) | 735 x 400 x 450 mm (28.9 x 15.7 x 17.7") | 885 x 400 x 450 mm (34.8 x 15.7 x 17.7") | 1185 x 400 x 450 mm (46.6 x 15.7 x 17.7")
Equipment Entry Opening | 450 mm / 17.7" | 450 mm / 17.7" | 450 mm / 17.7"
Fixed Sash Opening | 200 mm | 200 mm | 200 mm
Air Velocity | 0.5 ± 0.1 m/s, 100 ± 20 FPM | 0.5 ± 0.1 m/s, 100 ± 20 FPM | 0.5 ± 0.1 m/s, 100 ± 20 FPM
Hood Material | Welded white polypropylene structure with built-in sealed polypropylene worktop (all models)
Noise Level (tested 20 cm from the worktable, 1.2 m above ground) | <60 dB (all models)
Power Supply | 110 / 220 V, 50/60 Hz, Single phase (all models)
Illumination | 600 LUX, eco-friendly LED lighting (all models)
Filter | Carbon filters for solvents / HEPA (all models)

Accessories (table)
Model | Description
ECO-CF-075-ANA | 750 x 520 x 800 mm (29.5 x 20.4 x 31.5")
ECO-CF-090-ANA | 900 x 520 x 800 mm (35 x 20.4 x 31.5")
ECO-CF-120-ANA | 1200 x 520 x 800 mm (47.2 x 20.4 x 31.5")

Notes
Benchtop design for easy installation; optional metal stand available. Multiple HEPA and activated carbon filter configurations are offered to match application needs (solvents, acids, bases, formaldehyde as applicable). CE certified equipment suitable for basic containment tasks in labs and teaching environments.

Technical specifications

• Series / Commercial name: Eco Ductless Fume Hood
• Brand: TopAir Systems
• Available models: ECO-CF-075, ECO-CF-090, ECO-CF-120
• Outer dimensions (per model): see Models section above
• Workspace dimensions (per model): see Models section above
• Equipment entry opening: 450 mm / 17.7"
• Fixed sash opening (max working height): 200 mm (8")
• Air velocity: 0.5 ± 0.1 m/s (100 ± 20 FPM)
• Illumination: 600 LUX, eco-friendly LED
• Noise level: <60 dB (measured at specified test point)
• Power supply: 110/220 V, 50/60 Hz, single phase
• Construction: 8 mm welded polypropylene with sealed polypropylene worktop; tempered glass partial sliding sash
• Fan: speed-adjustable EC/ECM fan
• Filters: carbon filters for solvents and HEPA filter options
• Certifications: CE; complies with AFNOR NF X 15-211:2009
