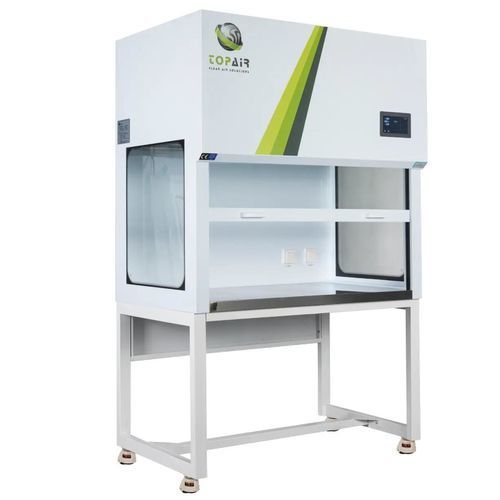

Laboratory clean bench HC-V090-PRO

for clean roomsfor research laboratorieson casters

Description
The HC-V PRO series vertical laminar flow clean benches provide a controlled, Class 100 (ISO‑5) work environment for sensitive industrial and laboratory applications. Units draw room air, pass it through a HEPA filter and deliver a uniform downward laminar airflow across the workspace. The benches are tested to USA Federal Standard 209E / ISO 14644-1 / CE.

Structure

• 8 mm welded polypropylene hood with high chemical resistance
• Stainless steel 304 worktop (SS316 optional)
• 5 mm safety glass front with counterweight system
• Side windows for improved visibility
• Optional Integrated Particle Monitoring System (IPMS)

Integrated Particle Monitoring System (IPMS)
The optional IPMS continuously measures particle concentration in real time and displays compliance with ISO‑5. It issues alerts when contamination is detected or service is required.

Red Light Alert
On air velocity failure a red light inside the unit activates and the system automatically shuts down to allow remote detection of critical faults.

Features

• Microprocessor control with 10.1” color touchscreen
• Automatic speed control to maintain 0.33 m/s (66 fpm) downflow
• Downflow alarm, critical red‑light alarm, service and filter alarms
• Real‑time filter status display
• High‑efficiency, low‑noise EC fan
• Germicidal waterproof UV (254 nm) with safety interlock
• LED illumination 800 lux
• 2 × universal sockets
• Metal stand and casters included
• Multi‑language interface with metric or Imperial units
• Optional Integrated Particle Monitoring System (IPMS)

Models / Basic Dimensions (table form)
Spec / Model — HC-V090-PRO — HC-V120-PRO — HC-V150-PRO — HC-V180-PRO
Outer Dimensions WxDxH — 35.4 x 33.4 x 51.9" / 900 x 850 x 1320 mm — 47.2 x 33.4 x 51.9" / 1200 x 850 x 1320 mm — 59 x 33.4 x 51.9" / 1500 x 850 x 1320 mm — 70.8 x 33.4 x 51.9" / 1800 x 850 x 1320 mm
Workspace (W x D x H) — 30.3 x 27.5 x 29.5" / 770 x 700 x 750 mm — 42.1 x 27.5 x 29.5" / 1070 x 700 x 750 mm — 53.9 x 27.5 x 29.5" / 1370 x 700 x 750 mm — 65.7 x 27.5 x 29.5" / 1670 x 700 x 750 mm
Test Standard — USA Federal Standard 209E / ISO‑14644‑1 / CE
Air Velocity — 0.33 m/s (66 fpm)
Cleanliness in Workstation — Class‑100 (FS 209E) / ISO‑5 (ISO‑14644‑1)
Hood Material — Polypropylene
Worktop Material — Stainless steel 304
Noise Level (tested 20 cm from worktop, 1.2 m above ground) — <52 dB (HC-V090-PRO) / <54 dB (HC-V120-PRO) / <56 dB (HC-V150-PRO, HC-V180-PRO)
Power Supply — 110 / 220 V, 50/60 Hz, Single phase
Illumination — 800 lux LED lighting
Filters — HEPA filter H14, 99.9995% efficiency at 0.3 μm (ULPA optional)

Specifications / Technical data

• Classified performance: Class 100 (FS 209E) / ISO‑5 per ISO‑14644‑1
• Air velocity: 0.33 m/s (66 fpm) downflow
• HEPA filter: H14, 99.9995% efficiency at 0.3 μm (ULPA optional)
• Hood: 8 mm welded polypropylene (high chemical resistance)
• Worktop: Stainless steel 304 (SS316 optional)
• Front protection: 5 mm safety glass with counterweight; side windows for visibility
• Control: Microprocessor with 10.1" touchscreen; multi‑language; metric/Imperial units
• Alarms & safety: Downflow, red‑light critical, service and filter alarms
• Fan: High‑efficiency quiet EC fan with automatic speed control
• UV: Germicidal waterproof UV (254 nm) with safety interlock
• Illumination: LED 800 lux
• Electrical: 110/220 V, 50/60 Hz, single phase
• Accessories: 2 universal sockets, metal stand and casters included
• Optional: Integrated Particle Monitoring System (IPMS) for real‑time particle concentration monitoring
• Noise levels: <52–56 dB depending on model
