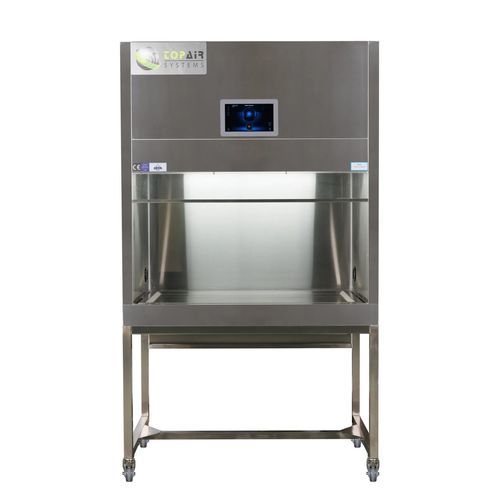

Laboratory clean bench HC-V series

for clean roomsfor research laboratorieson casters

Product description
TopAir vertical laminar flow clean benches provide a controlled, particle‑filtered workspace meeting Class 100 / ISO 5 cleanliness. Units draw ambient air, pass it through a HEPA filter via a fan, and direct filtered air downward across the work area to protect products and processes requiring a clean environment. All models are tested to USA Federal Standard 209E, ISO 14644-1 and CE requirements.

Structure

• Hood in 8 mm welded polypropylene with high chemical resistance
• Stainless steel 304 worktop (SS316 optional)
• 5 mm safety glass front with counterweight system for easy opening
• Side windows for improved visibility
• Optional Integrated Particle Monitoring System (IPMS)

Integrated Particle Monitoring System (IPMS)
The IPMS performs continuous, real‑time particle concentration measurement and displays compliance with ISO‑5. The system issues alerts when particle counts indicate contamination or when service is required, enabling proactive maintenance and process control.

Red Light Alert
On air velocity failure the internal red light activates and the system automatically shuts down. The visual alert enables remote detection of faults and facilitates notification for operators, including users with hearing impairment.

Features

• Microprocessor control with 10.1" color touchscreen
• Automatic fan speed control to maintain 0.33 m/s (66 fpm) downflow
• Downflow alarm, critical red light chamber alarm, service and filter alarms
• Real‑time filter status display
• High‑efficiency, low‑noise EC fan
• Germicidal waterproof UV lamp (254 nm) with safety interlock
• LED illumination 800 lux
• 2 x universal power sockets
• Includes metal stand and casters for mobility
• Multi‑language control with metric or imperial units
• Complies with USA Federal Standard 209E / ISO 14644-1 / CE
• Optional Integrated Particle Monitoring System (IPMS)

Models (summary table)
Spec / Model | HC-V090-PRO | HC-V120-PRO | HC-V150-PRO | HC-V180-PRO
Outer Dimensions WxDxH | 35.4 x 33.4 x 51.9" (900 x 850 x 1320 mm) | 47.2 x 33.4 x 51.9" (1200 x 850 x 1320 mm) | 59 x 33.4 x 51.9" (1500 x 850 x 1320 mm) | 70.8 x 33.4 x 51.9" (1800 x 850 x 1320 mm)
Workspace (W x D x H) | 30.3 x 27.5 x 29.5" (770 x 700 x 750 mm) | 42.1 x 27.5 x 29.5" (1070 x 700 x 750 mm) | 53.9 x 27.5 x 29.5" (1370 x 700 x 750 mm) | 65.7 x 27.5 x 29.5" (1670 x 700 x 750 mm)
Test Standard | USA Federal Standard 209E / ISO‑14644-1, CE (all models)
Air Velocity | 0.33 m/s (66 fpm) (all models)
Cleanliness in Workstation | Class-100 (FS 209E) / ISO-5 (all models)
Hood Material | Polypropylene (all models)
Worktop Material | Stainless steel 304 (all models)
Noise Level (measured 20 cm from worktop, 1.2 m above ground) | <52 dB (HC-V090-PRO) | <54 dB (HC-V120-PRO) | <56 dB (HC-V150-PRO) | <56 dB (HC-V180-PRO)
Power Supply | 110 / 220 V, 50/60 Hz, single phase (all models)
Illumination | 800 lux LED (all models)
Filters | HEPA H14: 99.9995% at 0.3 μm (ULPA optional)

Technical specifications

• Cleanliness class: Class-100 (FS 209E) / ISO-5 (ISO‑14644-1)
• Air velocity (downflow): 0.33 m/s (66 fpm)
• Hood material: Polypropylene
• Worktop: Stainless steel 304 (SS316 optional)
• HEPA filter efficiency: H14, 99.9995% at 0.3 μm (ULPA optional)
• Control: Microprocessor with 10.1" color touchscreen
• Alarms: downflow, red light chamber alarm, service alarm, filter alarm
• Fan: high‑efficiency low‑noise EC fan
• UV: germicidal waterproof UV 254 nm with safety interlock
• Illumination: LED 800 lux
• Sockets: 2 x universal
• Mobility/stand: metal stand with casters included
• Power supply: 110/220 V, 50/60 Hz, single phase
• Noise level: <52–56 dB depending on model
• Optional: Integrated Particle Monitoring System (IPMS) for real‑time particle monitoring
