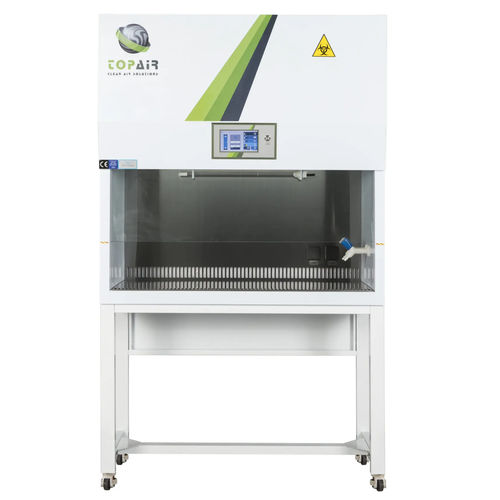

Class II microbiological safety cabinet ECO-BO-080-PP

containmentmicrobiologylaboratory

Product overview
TopAir Ecoline Biosafety Cabinet for Class II, Type A2 containment. Compact benchtop unit designed for laboratory work with biological agents. Airflow pattern: 70% downflow / 30% exhaust. Filtration: 2 × HEPA H14 (99.9995% @ 0.3 µm). Inner structure in 8 mm anti-corrosive polypropylene; SS304 worktop (SS316 optional). Suitable for microbiology, cell culture and routine lab procedures where ISO 5 cleanliness is required.

Structure

• 8 mm polypropylene inner panels with high chemical resistance
• SS304 worktop (SS316 optional)
• Front window: 6 mm triplex safety glass with electric lift system

Key features

• Microprocessor control with 7” color touchscreen display
• Class II, Type A2 airflow: 70% recirculation / 30% exhaust
• Germicidal waterproof UV lamp (254 nm) with safety interlock
• LED work light, 1000 lux
• 2 × HEPA H14 filters (99.9995% efficiency @ 0.3 µm)
• 2 built-in electrical outlets
• High-efficiency, low-noise EC fan
• CE certified

Models
Specification / Model: ECO-BO-080-PP
Outer dimensions (W × D × H): 800 × 680 × 1200 mm (31.5 × 26.7 × 48 in)
Workspace (W × D × H): 720 × 500 × 570 mm (28.3 × 19.7 × 22.4 in)
Front sash max opening: 400 mm (15.7 in)
Filter type: HEPA H14, 99.9995% @ 0.3 µm
Downflow velocity: 0.26 m/s (52 fpm)
Inflow velocity: 0.44 m/s (88 fpm)
Airflow pattern: 70% circulation / 30% exhaust
Cleanliness level: Class 100 / ISO 5
Noise (measured 20 cm from work surface, 1.2 m above floor): <62 dB
Power supply: 115/230 V, 50/60 Hz, single phase

Accessories

• ECO-BO-080-ST — Metal stand

Technical specifications

• Protection: Class II biosafety cabinet, Type A2 airflow (70% downflow / 30% exhaust)
• Filtration: 2 × HEPA H14, 99.9995% efficiency @ 0.3 µm
• Materials: 8 mm anti-corrosive polypropylene inner structure; SS304 worktop (SS316 optional)
• Front window: 6 mm triplex safety glass with electric lift
• Control: Microprocessor control, 7” color touchscreen
• Disinfection: Germicidal waterproof UV lamp (254 nm) with safety interlock
• Illumination: LED, 1000 lux
• Air velocities: Downflow 0.26 m/s (52 fpm); Inflow 0.44 m/s (88 fpm)
• Cleanliness: Class 100 / ISO 5
• Noise level: <62 dB (measurement position specified)
• Power: 115/230 V, 50/60 Hz, single phase
• Other: 2 electrical outlets; high-efficiency quiet EC fan; CE certified
