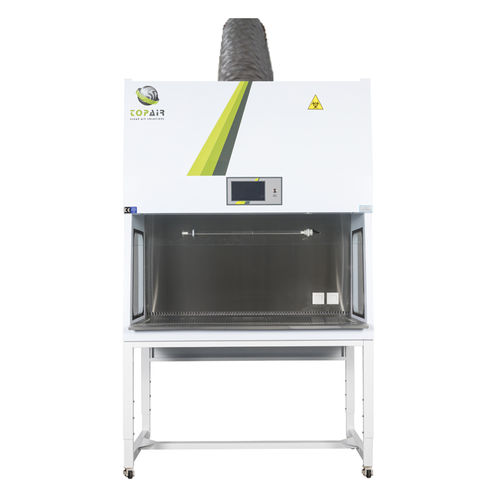

Type B2 microbiological safety cabinet BO-090-PP-B

containmentmicrobiologylaboratory

Product Overview
TopAir’s Class II, Type B2 biosafety cabinet protects laboratory personnel, the environment and sensitive workflows handling biological agents. The cabinet provides high contamination control with two ULPA U15 filters (99.9995% @ 0.1 µm). Constructed in welded anti-corrosive polypropylene, it is suitable for cleanrooms and resistant to acids and many chemicals. The built-in IPMS (Integrated Particle Monitoring System) issues contamination alarms for ISO 5 verification.

Structure

• 8 mm welded polypropylene with high chemical resistance
• Stainless steel 304 worktop (SS316 optional)
• Front sash: 6 mm triplex safety glass with electric lift
• Side windows for improved visibility

Features

• Microprocessor control with 10.1” color touchscreen
• Class II, Type B2 airflow pattern: 100% exhaust
• Two ULPA U15 filters (99.9995% @ 0.1 µm)
• High-efficiency quiet ECM fan with VAV auto filter clogging compensation
• Inflow/downflow alarms, sash position alarm, critical chamber red-light alarm, service reminders
• Real-time filter gauge status display
• Germicidal waterproof UV light (254 nm) with safety interlock; LED lighting (1000 lux)
• 2 x universal sockets and 2 x taps
• Time, date, temperature and humidity display
• Multi-language control, metric/imperial units
• Adjustable stand and arm rest
• ISO 5 / CLASS 100 cleanliness (ISO 14644-1 and US Federal Standard 209E)
• CE certified, EN 12469
• Note: Class II, Type B2 cabinets require an exhaust connection to a ducting system (not included)

Models
Spec / Model — BO-090-PP-B | BO-120-PP-B | BO-150-PP-B | BO-180-PP-B
Outer Dimensions W x D x H — 915 x 800 x 1500 mm (36 x 31.5 x 59") | 1220 x 800 x 1500 mm (48 x 31.5 x 59") | 1525 x 800 x 1500 mm (60 x 31.5 x 59") | 1830 x 800 x 1500 mm (72 x 31.5 x 59")
Workspace (W x D x H) — 835 x 600 x 640 mm (32.8 x 23.6 x 25.2") | 1135 x 600 x 640 mm (44.7 x 23.6 x 25.2") | 1440 x 600 x 640 mm (57 x 23.6 x 25.2") | 1715 x 600 x 640 mm (67.5 x 23.6 x 25.2")
Front Sash Max Opening — 480 mm / 18.9" (all models)
Certifications — CE / In accordance with EN 12469
Downflow Velocity — 0.33 m/s, 66 fpm (all models)
Inflow Velocity — 0.5 m/s, 100 fpm (all models)
Airflow pattern — CLASS II, Type B2: 100% exhaust
Cleanliness level — Class 100 / ISO 5
Hood Material — Welded white polypropylene structure; 304 stainless steel interior; optional windowless sides or 316 stainless steel structure
Adjustable Stand Height Range — 70 / 80 / 90 cm (27 / 31 / 36")
Noise Level (measured 20 cm from worktable, 1.2 m above ground) — BO-090-PP-B <56 dB; BO-120-PP-B <60 dB; BO-150-PP-B <63 dB; BO-180-PP-B <63 dB
Power Supply — 115 / 230 V, 50/60 Hz, single phase
Illumination — 1000 LUX, eco-friendly LED lighting
Filters — ULPA U15 efficiency 99.9995% @ 0.1 µm

Accessories
BO-FAN-SET: Set includes centrifugal fan, 10 m flexible duct (Ø 25/10") and frequency converter

Technical specifications

• Cabinet class: Class II, Type B2 (100% exhaust)
• IPMS: Integrated Particle Monitoring System with contamination alarm for ISO 5 verification
• Primary filtration: 2 x ULPA U15 (99.9995% @ 0.1 µm)
• Construction: 8 mm welded polypropylene; stainless steel 304 worktop (SS316 optional)
• Workspace dimensions vary by model (BO-090 to BO-180) from 835 mm to 1715 mm width; depth 600 mm; height 640 mm
• Outer dimensions vary by model from 915 x 800 x 1500 mm up to 1830 x 800 x 1500 mm
• Sash: 6 mm triplex safety glass with electric lift; max opening 480 mm
• Air velocities: downflow 0.33 m/s (66 fpm); inflow 0.5 m/s (100 fpm)
• Noise level: <56 dB to <63 dB depending on model
• Controls: Microprocessor with 10.1" color touchscreen; multi-language; metric/imperial units
• Additional: germicidal waterproof UV (254 nm) with safety interlock; LED lighting (1000 lux); real-time filter gauge; inflow/downflow/sash/critical chamber alarms
• Electrical: 115 / 230 V, 50/60 Hz, single phase
• Certifications/standards: CE; EN 12469; ISO 14644-1 Class 5 (Class 100)
