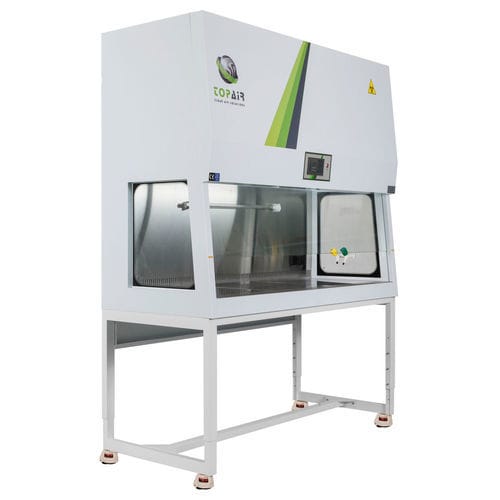

Type A2 microbiological safety cabinet BO-090-PP

for clinical analysislaboratoryfor research

Product overview
Class II, Type A2 biological safety cabinet designed for clinical and research laboratories. Protects personnel, product and environment using two ULPA U15 filters (99.9995% @ 0.1 µm) and an Integrated Particle Monitoring System (IPMS) for ISO 5 verification. Constructed in chemically resistant welded polypropylene with stainless steel worktop options.

Structure

• 8 mm welded polypropylene hood for high chemical resistance
• Stainless steel worktop: SS304 standard (SS316 optional)
• 6 mm triplex safety glass front sash with electric lift
• Side windows for improved visibility

Features

• Microprocessor control with 10.1 in color touchscreen; multi-language interface; metric/imperial units
• Airflow pattern: Class II, Type A2 — 70% recirculation, 30% exhaust
• Two ULPA U15 filters (99.9995% @ 0.1 µm)
• High-efficiency quiet ECM fan with VAV auto filter-clogging compensation
• Alarms: inflow, downflow, sash position, critical chamber red light, service reminder
• Real-time filter gauge status display
• Germicidal waterproof UV (254 nm) with safety interlock
• LED illumination (1000 lux), time/date display, temperature & humidity display and alarm
• 2 universal sockets, adjustable stand and arm rest
• ISO 14644-1 Class 5 / US Federal Standard 209E Class 100 cleanliness; CE certified; EN 12469 applicable (BO-120-PP referenced)

Models / Dimensions
Models: BO-090-PP | BO-120-PP | BO-150-PP | BO-180-PP
Outer dimensions (W x D x H) — 915 x 800 x 1500 mm ; 1220 x 800 x 1500 mm ; 1525 x 800 x 1500 mm ; 1830 x 800 x 1500 mm
Workspace (W x D x H) — 835 x 600 x 640 mm ; 1135 x 600 x 640 mm ; 1440 x 600 x 640 mm ; 1715 x 600 x 640 mm
Front sash max opening — 480 mm (18.9 in)
Downflow velocity — 0.33 m/s (66 fpm)
Inflow velocity — 0.5 m/s (100 fpm)
Noise level (measured 20 cm from worktable, 1.2 m above floor) — <56 dB ; <60 dB ; <63 dB ; <63 dB (depending on model)
Power supply — 115 / 230 V, 50/60 Hz, single phase
Illumination — 1000 LUX LED
Filters — ULPA U15, 99.9995% @ 0.1 µm

Technical specifications

• Integrated Particle Monitoring System (IPMS) with contamination alarm for ISO 5 verification
• Two ULPA U15 filters (99.9995% @ 0.1 µm)
• Microprocessor control with 10.1 in touchscreen and multi-language interface
• ECM fan with VAV auto filter-clogging compensation and comprehensive alarms
• Germicidal waterproof UV 254 nm with safety interlock
• LED lighting 1000 lux; time/date, temperature and humidity displays with alarms
• Worktop: SS304 standard (SS316 optional)
• Hood: 8 mm welded polypropylene; optional windowless sides or stainless steel structure
• Certifications: CE; EN 12469 (model dependent)
• Cleanroom classification: ISO 14644-1 Class 5 / US Federal Standard 209E Class 100
• Available models: BO-090-PP, BO-120-PP, BO-150-PP, BO-180-PP
• Adjustable stand heights: 70 / 80 / 90 cm; integrated universal sockets and arm rest
