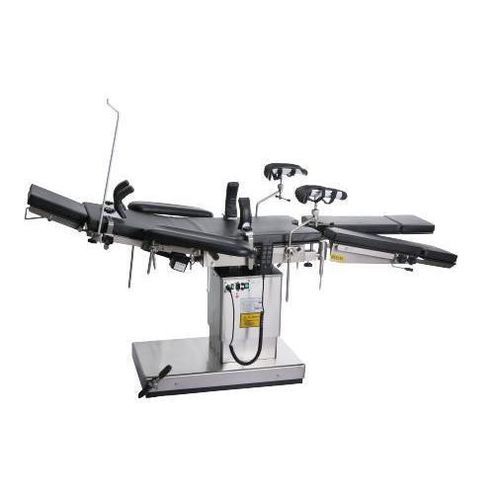

Universal operating table YK-OT3012

electricadjustable heighttilting

Product overview
The electric operating table YK-OT3012 is designed for general surgical use. It provides motorized adjustments for height, Trendelenburg/reverse Trendelenburg, lateral tilt and segmented head/back/leg sections with removable foot plate.

Technical configuration

• Overall length: 2100 mm
• Width: 480 mm
• Lifting height range: 680–930 mm
• Trendelenburg / Reverse Trendelenburg: 25° / 25°
• Lateral tilt: 15°
• Head section angle (raised / lowered): 45° / 90°
• Back section angle (raised / lowered): 45° / 15°
• Leg section angle (raised from horizontal / lowered): 15° / 90°
• Leg section opened angle: 180°
• Foot plate: detachable; can form 90° angle with leg plate
• Kidney bridge elevation: 100 mm

Features / Specifications

• Motorized height and position adjustments for OR workflows
• Multiple articulated sections for patient positioning
• Detachable foot plate for access and sterilization
• Kidney bridge adjustable up to 100 mm
• Compact tabletop width 480 mm suitable for standard surgical setups

Visual details
Product sheets include photos and diagrams of tabletop sections and accessory attachments (see detail images).
